DPG10/20 series power choke testers can be enhanced with a variety of accessories that improve measurement capability, ease of use, and safety. These include solderless test adapters for low-inductance SMD components, specialized measuring adapters, an interface box for automated test lines, and protective transport/storage cases..

  • Detail
  • Special Features
  • Specification

Solderless Test Adapters: These adapters allow easy and reliable measurement of low-inductance SMD components without soldering. They are spring-loaded to securely hold components sized 6–25 mm. Different adapters correspond to the measurement range (MAB1, MAB2, MAB3), enabling reproducible readings down to 50–100 nH.

Measuring Adapters for Low-Inductance Components: Designed for the DPG10 B-series, these adapters plug directly into the front panel and allow measurement of inductances below 100 nH. They are suitable for SMD and through-hole components.

InterfaceBox INT1: This interface enables full automation of measurement processes in a production line, allowing PLC communication with the DPG10/20 software. It controls measurement start, completion, and pass/fail signaling, and can manage peripherals like warning lights or foot switches.

Transport/Storage Case: The CASE1 is designed to protect DPG10 series testers and accessories. The aluminum construction, foam lining, and organized compartments provide secure transport and storage. It is compact and portable with a carrying handle and adjustable feet but is not compatible with the DPG10-4000B/F model.

  • Solderless adapters for precise measurement of low-inductance SMD components

  • Measuring adapters for very small inductance values (<100 nH)

  • InterfaceBox INT1 for full automation of test lines without custom software

  • Robust aluminum case for transport and organized storage of DPG10 testers and accessories

  • Designed for high reproducibility, safety, and convenience

Product Description Measurement / Usage Notes Order Number
Solderless SMD Test Adapters (MAB1SMD, MAB2SMD, MAB3SMD) Spring-loaded clamping brackets to hold SMD components 6–25 mm Measure low-inductance SMD components reproducibly down to 50–100 nH Eliminates the need for soldering Separate adapter per current range

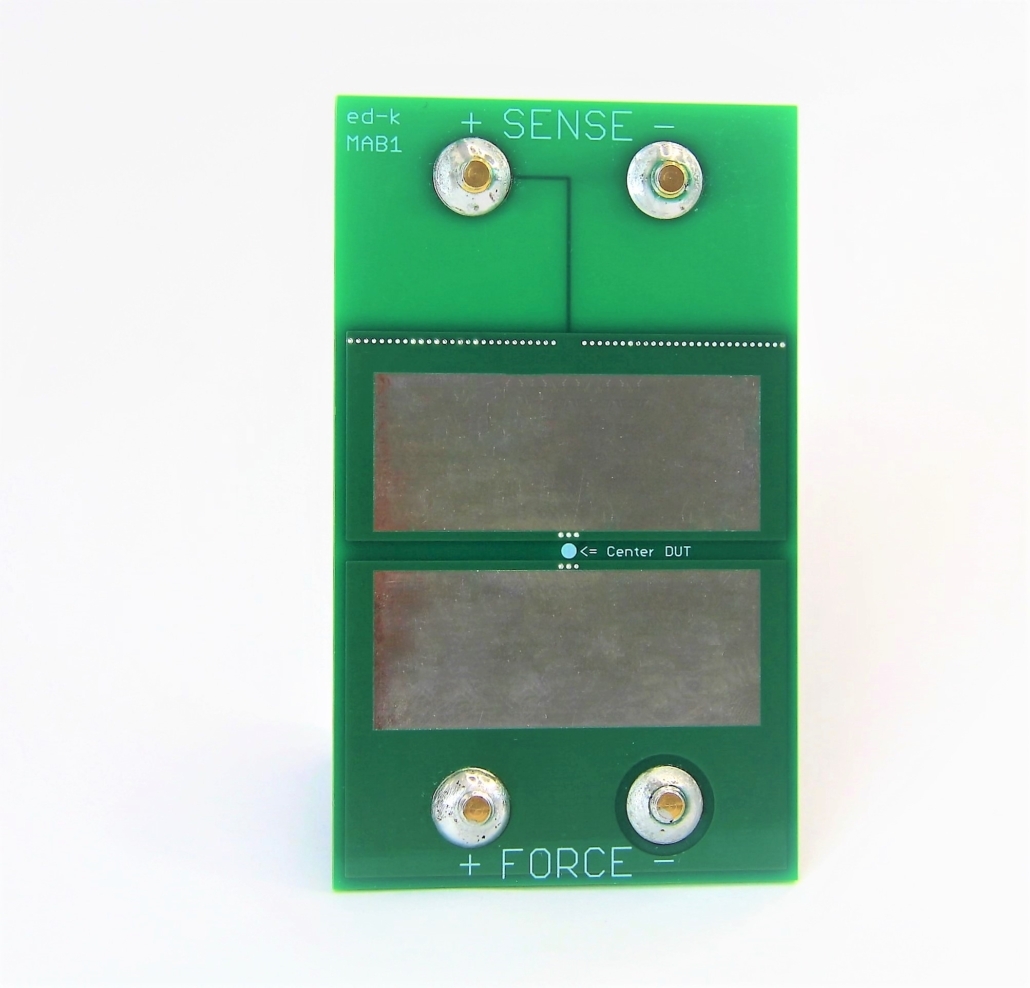

Measuring Adapter Set for DPG10 B-series (MAB1, MAB2, MAB3) Plug directly into front panel Low-inductance components, through-hole or SMD Enables measurement <100 nH; MAB1 not compatible with discontinued DPG10 A-series MAB123 (set), MAB111 (3x MAB1), MAB222 (3x MAB2), MAB333 (3x MAB3)
InterfaceBox INT1 Interface between DPG10 software and fully automated test lines Automates measurement and DUT handling via PLC 3 universal inputs, 5 universal outputs; can control ejection, warning lights, horns, foot switches INT1
Transport/Storage Case (CASE1) Robust aluminum profile case with foam lining Protects DPG10 testers and accessories during transport Internal dimensions: 650 × 410 × 230 mm; 2 automatic locks, 3 hinges, 8 steel corner protectors; not suitable for DPG10-4000B/F CASE1
