ITECH AC Electronic Loads: Programmable Solutions for Inverter and Grid Testing

Welcome to Revinetech's specialized category for ITECH AC Electronic Loads. In the rapidly expanding fields of renewable energy, EV charging infrastructure, and smart grid technology, a standard passive load is insufficient. An ITECH AC electronic load is an essential instrument for accurately simulating complex, non-linear grid impedance and demanding load profiles, allowing engineers to rigorously test the stability, efficiency, and compliance of AC power sources, especially inverters and Uninterruptible Power Supplies (UPS).

You are seeking a high-performance, programmable instrument that delivers superior power sinking capabilities, wide input range, and advanced analysis features. Our selection features the complete range of ITECH solutions, including high-power, multi-phase, and regenerative electronic loads. Trust Revinetech to provide the genuine ITECH AC load that offers flexible control, energy efficiency, and the certified performance necessary for validating your AC power devices against global standards.

Why ITECH AC Loads Are Crucial for AC Power Validation

ITECH instruments are engineered to accurately mimic the real-world operational environments of AC power sources, functioning as dynamic, programmable sinks that reveal performance issues passive loads cannot detect.

Advanced AC Source Characterization and Compliance

The core strength of an ITECH AC electronic load is its ability to simulate highly precise load conditions crucial for regulatory compliance and performance verification:

• Power Factor Correction (PFC) Testing: The load can be precisely programmed to sink current at various Power Factors (PF)—leading, lagging, or unity—essential for thoroughly testing the PFC circuits of power supplies and inverters.

• Transient and Dynamic Loading: ITECH loads simulate rapid changes in current draw and short-circuit conditions. This is vital for measuring the recovery time, stability, and transient response of the AC source when facing sudden, large power demands.

• Harmonic Simulation: The load can be programmed to sink specific harmonic current waveforms, enabling the simulation of non-linear loads (like computers or switching power supplies) to stress-test the inverter's stability.

Regenerative Efficiency and Safety

ITECH’s advanced technology focuses on both powerful testing and environmental responsibility:

• Regenerative Power Flow: High-power ITECH AC electronic loads can convert the absorbed AC power from the Device Under Test (DUT) back into clean AC power and return it to the utility grid. This energy recovery reduces operating costs and minimizes heat dissipation in the test facility.

• Anti-Islanding Protection: Essential for inverter testing, the load can perform specialized tests to ensure the grid-tied inverter safely shuts down when the utility grid fails, preventing hazardous "islanding" conditions.

• Safety and Protection: Robust protection features, including Overvoltage (OVP), Overcurrent (OCP), and Overpower (OPP), safeguard both the load and the costly DUT.

Exploring the ITECH AC Electronic Load Categories

Our catalogue features the specialized lines of ITECH AC loads, categorized by their power handling, phase count, and regenerative capabilities.

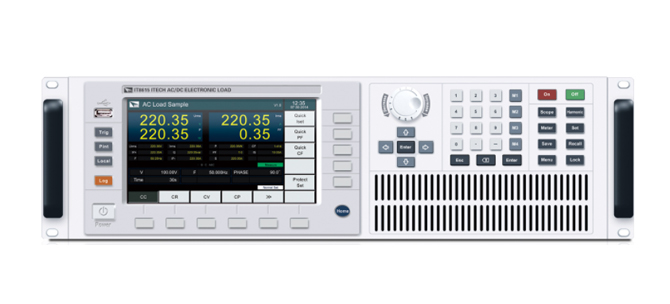

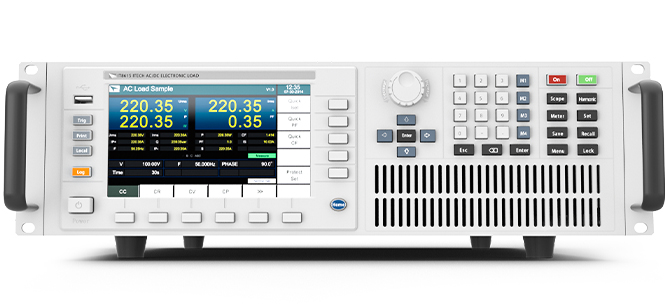

Single-Phase Programmable Benchtop Loads

These are the essential instruments for R&D and QA testing of consumer electronics, single-phase power supplies, and small UPS systems:

• Wide Input Range: Accommodating broad voltage and frequency inputs to simulate global grid conditions.

• Constant Modes: Offering Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), and Constant Power (CP) modes for versatile testing.

• Digital Control: Full support for standard communication protocols (USB, LAN, GPIB) for automated testing and data logging.

Three-Phase and High-Power Industrial Loads

These systems are mandatory for testing large industrial equipment, grid-tied inverters, and EV charging pile infrastructure:

• Multi-Phase Capability: Capable of sinking power from complex three-phase systems, essential for testing motors, industrial UPS units, and large inverters.

• High Power Density: Designed for industrial environments, delivering high kilowatt sinking capacity in a compact, rack-mountable footprint.

• Master/Slave Operation: Allows multiple load units to be linked together and controlled as a single virtual load, easily scaling the total current capacity for high-power testing.

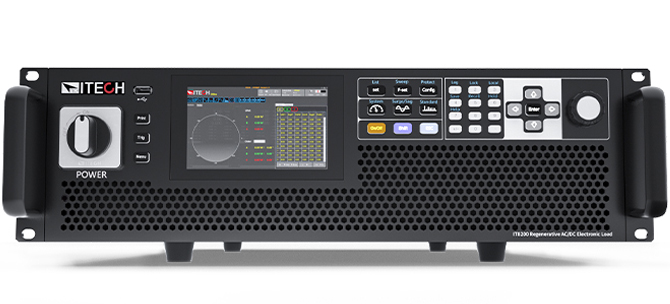

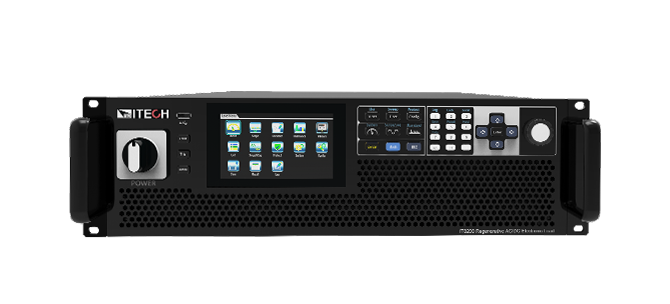

Advanced Regenerative AC Electronic Loads

This advanced category is ideal for testing renewable energy systems, offering superior energy management:

• Grid Synchronization: Capable of precisely synchronizing with and cleanly feeding absorbed power back into the utility grid.

• Customized Waveforms: Allows for the generation of complex sinking current waveforms, including specific harmonic patterns, for advanced stress-testing of inverter performance under non-ideal load conditions.

Integrated Features for Testing Efficiency and Analysis

ITECH AC loads integrate powerful analysis tools to simplify complex waveform measurements and streamline testing workflows.

• Built-in Power Analyzer: Features integrated high-accuracy measurement of key AC parameters, including True RMS voltage and current, real power, apparent power, power factor, and harmonic distortion.

• Sequence Programming: Allows the user to create and execute complex, long-duration test sequences (list mode), simulating sophisticated duty cycles and transient events without requiring constant host PC control.

• Data Logging and Monitoring: Provides automated recording of all measured parameters over time, crucial for trend analysis, long-term stability checks, and compliance documentation.

• Graphical Visualization: Intuitive displays often feature graphical feedback for real-time visualization of voltage and current waveforms and power measurements, simplifying monitoring and fault diagnosis.

Partner with Revinetech for ITECH AC Load Solutions

Selecting the ideal ITECH AC Electronic Load requires careful consideration of power rating, phase count, and the necessity of advanced features like regenerative operation and Power Factor control. Revinetech is your authorized source for the complete ITECH portfolio. Our technical specialists are ready to assist you in matching the certified performance, dynamic speed, and programming capability of the right ITECH AC load to your specific R&D, compliance, and industrial demands.

Validate your AC power sources with verifiable precision and efficiency. Browse our catalogue of ITECH AC Electronic Loads today, compare the best single-phase and three-phase regenerative units, and contact us for expert advice and a personalized quote.

Frequently Asked Questions (FAQs)

What is the main advantage of a regenerative AC electronic load?

A regenerative AC electronic load absorbs the AC power from the DUT (like an inverter) and converts it back into clean AC power, returning it to the grid. This capability drastically reduces energy costs and heat dissipation in the test lab, particularly during large-scale, long-duration testing.

Why must I test the power factor of my AC source with an electronic load?

Testing the Power Factor (PF) ensures that your AC source (e.g., an inverter) can handle loads that are not purely resistive. An ITECH AC load can simulate precise lagging or leading power factors, stress-testing the source's stability and verifying that it can safely deliver reactive power to the grid.

What is anti-islanding testing, and how does an ITECH load perform it?

Anti-islanding testing is mandatory for grid-tied inverters to ensure they immediately shut down if the utility grid goes down. The ITECH AC electronic load can be programmed to simulate the sudden, complete loss of the grid, allowing engineers to verify the inverter's critical safety shutdown response time.

What is the difference between a three-phase and a single-phase AC electronic load?

A single-phase AC electronic load tests common household or small commercial power systems. A three-phase AC electronic load is necessary for industrial motors, large UPS units, and commercial inverters, as it can simultaneously sink power across three separate phase lines for comprehensive system testing.

Can I use an ITECH AC electronic load to simulate non-linear loads?

Yes. ITECH AC electronic loads can be programmed to draw complex, non-sinusoidal current waveforms (such as specific harmonic patterns) that accurately simulate non-linear devices like rectifiers or switching power supplies. This allows for rigorous stress-testing of the power source’s stability under realistic load conditions.
