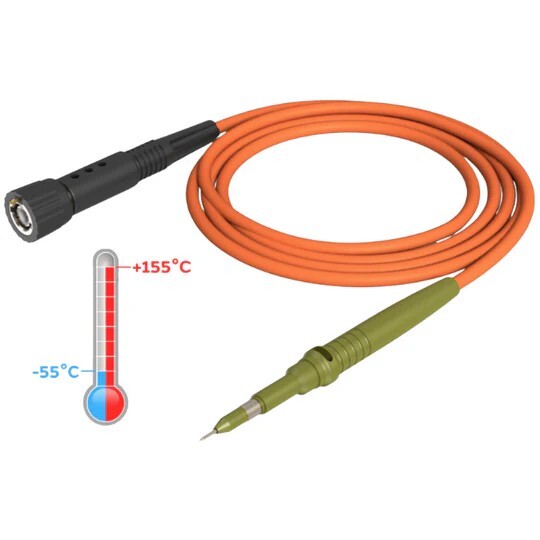

PMK High Temperature Probes: Durable Measurement Solutions for Extreme Heat

Welcome to Revinetech's elite category for PMK High Temperature Probes. In demanding industrial, automotive, aerospace, and power electronics applications, temperature is a critical constraint that affects both equipment operation and measurement accuracy. PMK high temperature probes are meticulously engineered using specialized materials and robust construction to provide reliable, high-fidelity signal acquisition directly within extreme heat environments, ensuring the safety of the technician and the integrity of the oscilloscope measurement.

You are seeking robust, durable probes designed to withstand continuous exposure to high operating temperatures while maintaining specified bandwidth and minimal signal distortion. Our selection features the complete range of PMK high temperature solutions, including specialized passive, active, and differential probes with extended thermal operating ranges. Trust Revinetech to provide the genuine PMK high temperature probe that delivers certified longevity, precise signal transfer, and the essential durability required for validating designs in thermally challenging conditions.

Why PMK High Temperature Probes Are Crucial for Extreme Environments

Standard oscilloscope probes are typically rated only up to $+50^\circ\text{C}$ or $+70^\circ\text{C}$ and will fail or provide inaccurate measurements when used in hot machinery or testing chambers. PMK solves this by engineering probes specifically for thermal resilience.

Thermal Resilience and Measurement Integrity

The core strength of PMK high temperature probes is their ability to perform accurately where traditional probes cannot:

• Extended Temperature Range: Probes are constructed with specialized insulation, connectors, and internal components that reliably operate at elevated temperatures, often up to $+125^\circ\text{C}$ or higher, without performance degradation.

• Durable Materials: Utilizing temperature-resistant plastics and highly stable dielectric materials ensures the probe's capacitance and impedance characteristics remain consistent even when subjected to continuous heat.

• Long-Term Reliability: The robust design ensures the probe's physical structure and electrical connections withstand the thermal cycling associated with hot testing, maximizing the probe's service life.

Maintaining High Fidelity in Heat

High temperature must not compromise the signal integrity required for modern electronics:

• Wide Bandwidth: Even with thermal constraints, these probes maintain the necessary high bandwidth to accurately capture fast switching edges and high-frequency components essential for power electronics and automotive debugging.

• Low Loading: Specialized low-capacitance designs minimize the probe's loading effect on the circuit under test, which is critical for preserving signal integrity in thermally sensitive components.

• Certified Accuracy: Probes are rigorously tested to guarantee that their attenuation ratio and compensation remain accurate across the full specified high temperature range.

Exploring the PMK High Temperature Probe Categories

Our catalogue features the specialized lines of PMK high temperature probes, categorized by their operation mode and maximum thermal rating.

High Temperature Passive Probes

These probes provide a robust, economical solution for general-purpose high temperature measurements:

• High Voltage Ratings: Suitable for measuring high-voltage signals in power supplies and industrial drives within hot environments.

• Robust Connection Options: Designed with ruggedized probe tips and ground connections that endure contact with hot surfaces.

High Temperature Active and Differential Probes

These probes are essential for high-speed and floating measurements under thermal stress:

• Active Probes: Incorporating temperature-stable electronics, these probes maintain ultra-low input capacitance and high bandwidth, vital for probing high-frequency nodes in thermally challenging environments.

• Differential Probes: Required for safely and accurately measuring floating signals (voltage difference between two points not referenced to ground) within hot automotive or industrial components.

• Low Common Mode Rejection (CMRR) in Heat: Specialized thermal design ensures that the probe's ability to reject common-mode noise remains high even at maximum operating temperatures, guaranteeing clean differential measurements.

Specialized Accessories and Extensions

PMK offers various accessories to simplify integration in thermal testing chambers:

• High Temperature Cables: Specialized extension cables and leads designed to maintain signal integrity while routing the measurement from a hot test chamber to the external oscilloscope.

• Solder-In Heads: Solder-in probe adapters built with high temperature-rated materials for permanent, low-inductance connection to test points on boards undergoing thermal testing.

Integrated Features for Reliable Measurement

PMK probes incorporate features that streamline workflow, improve safety, and ensure accurate data acquisition in challenging thermal conditions.

• Safety Standards: Constructed with high-quality insulation and materials that meet necessary safety ratings (e.g., CAT II/III) for the voltage levels being measured, even at maximum temperature.

• Robust Connectors: Utilizing high-retention and durable connectors that resist thermal degradation and ensure a reliable connection to the oscilloscope's input channel.

• Compatibility: Designed to be fully compatible with oscilloscopes from all major manufacturers, providing versatility across different test setups.

Partner with Revinetech for PMK High Temperature Assurance

Selecting the ideal PMK High Temperature Probe requires assessing the maximum required operating temperature, the necessary bandwidth (for switching speed), and the operating mode (differential vs. passive). Revinetech is your authorized source for the complete PMK probe portfolio. Our technical specialists are ready to assist you in matching the certified thermal resilience, high signal fidelity, and specific voltage rating of the right PMK probe to your specific high-temperature testing and validation demands.

Measure reliably where others cannot. Browse our catalogue of PMK High Temperature Probes today, and contact us for expert advice and a personalized solution design.

Frequently Asked Questions (FAQs)

What is the critical difference between a standard probe and a PMK high temperature probe?

The critical difference is the operating temperature range. Standard probes fail or drift significantly above $+70^\circ\text{C}$. A PMK high temperature probe is built using specialized, thermally stable components that guarantee specified accuracy and maintain physical integrity under continuous exposure to high temperatures, often exceeding $+125^\circ\text{C}$.

Why is maintaining low input capacitance important in a high temperature probe?

Maintaining low input capacitance is vital because heat increases the resistance and changes the dielectric properties of components. If the probe's capacitance drifts excessively due to heat, it will load the circuit under test inaccurately. PMK probes use stable materials to ensure low loading is maintained even at peak temperature.

Are there active (powered) probes available for high temperature testing?

Yes. PMK offers high temperature active probes and differential probes. These models use thermally stable internal electronic components to provide the necessary high bandwidth and low input capacitance, although the electronics are typically designed to operate reliably within the high temperature range.

How does a high temperature probe ensure safety in a hot environment?

Safety is ensured through superior insulation materials and design. The probe's insulation, cable jacket, and connectors are engineered to withstand the maximum operating temperature while still meeting the required voltage safety rating (e.g., CAT rating), protecting the user from electrical hazards.

What applications commonly require PMK high temperature probes?

Applications commonly requiring PMK high temperature probes include automotive testing (engine compartment electronics, battery thermal analysis), aerospace component validation, burn-in testing, and power electronics testing conducted within controlled thermal chambers.
