Waveform Generators

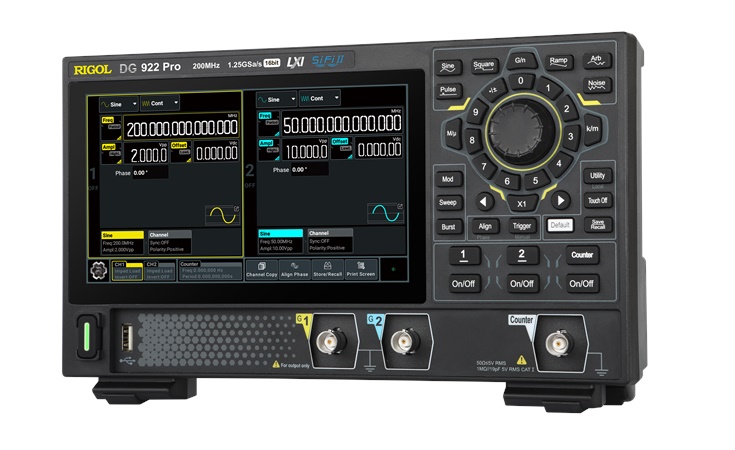

Rigol DG922 Pro

Now includes NABL Calibration Certificate.
Rs. 147264.00

2 channel function / arbitrary waveform generator with 1 μHz to 200 MHz bandwidth, 1.25 GSa/s sample rate, 16 Bit resolution, 16 Mpts memory depth (32 Mpts optional), amplitude range 1 mVpp to 10 Vpp (high impedance), 17,8 cm (7″) touchdisplay..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

DG900 Pro series Function/Arbitrary Waveform Generator provides up to 1.25 GSa/s sample rate and 16 Mpts/CH memory depth (standard). It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.

The 7″ touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction.

It is equipped with a Type-C interface for power charge. In addition, it has a compact size and supports the attachment to a bracket, saving valuable bench space for engineers.

Model DG902 Pro DG912 Pro DG922 Pro
Max. Frequency 70 MHz 150 MHz 200 MHz
Resolution 1 µHz 1 µHz 1 µHz
Sample Rate 1,25 GSa/s 1,25 GSa/s 1,25 GSa/s
Vertical Resolution 16 bits 16 bits 16 bits
Waveform Memory Depth 16 Mpts (standard), 32 Mpts (optional) 16 Mpts (standard), 32 Mpts (optional) 16 Mpts (standard), 32 Mpts (optional)
Max Amplitude 10 Vpp < 50 MHz 10 Vpp < 50 MHz 10 Vpp < 50 MHz
Frequency Counter up to 1 GHz up to 1 GHz up to 1 GHz
Channels 2 2 2
