The Rigol RSA5000 series offers advanced real-time analysis, a compact design, and rich data displays. It is particularly suited for engineers working with RF systems that involve WiFi, Bluetooth, and other RF technologies that face challenges like frequency hopping, channel conflicts, and spectrum interference.
Real-Time Spectrum Analysis ensures no signal is missed, with 100% POI for signals lasting longer than 7.45 µs. This feature allows for precise measurement and monitoring of modern RF systems, ensuring that transient signals or events are fully captured. The RSA5000 offers a real-time bandwidth of 25 MHz (expandable to 40 MHz), which is ideal for IoT, RFID, analog and digital modulated signals, and embedded system design.
Its high sensitivity, with a DANL as low as -165 dBm, makes the RSA5000 perfect for weak signal detection, while its 1 Hz RBW ensures detailed frequency resolution. EMI Pre-compliance testing is also available, with standard EMI filters and detectors for 9 kHz, 120 kHz, and Quasi-Peak measurements.

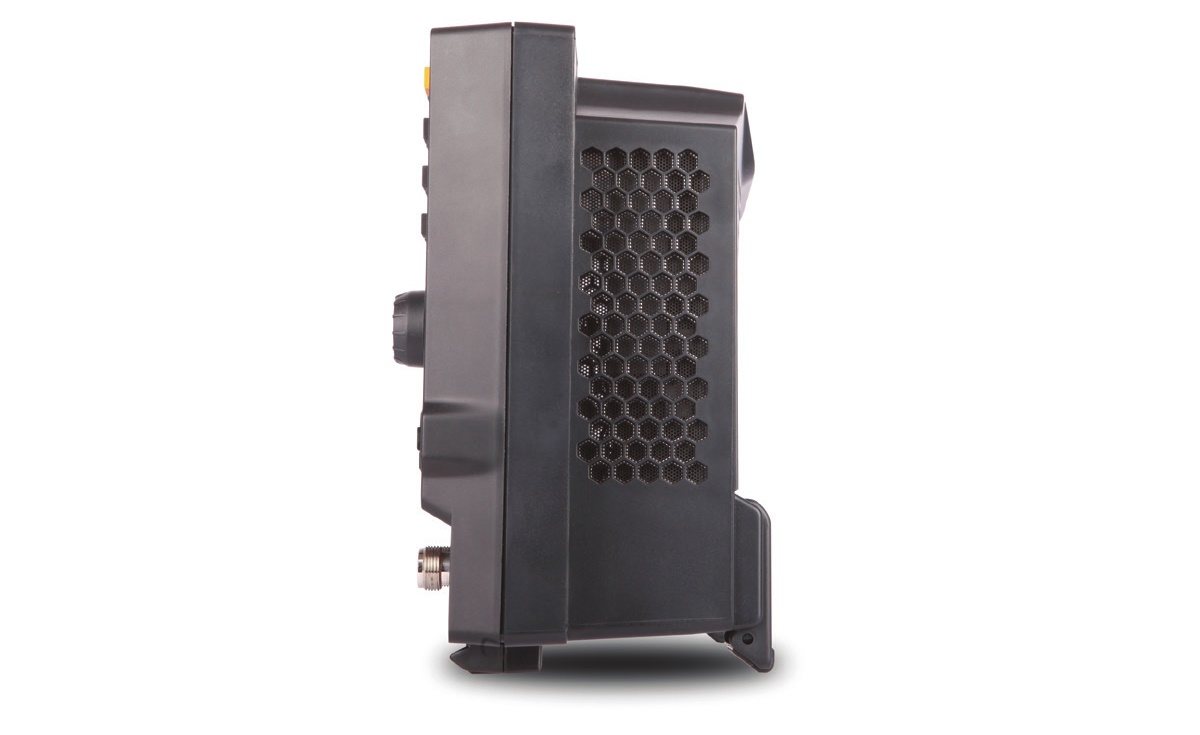

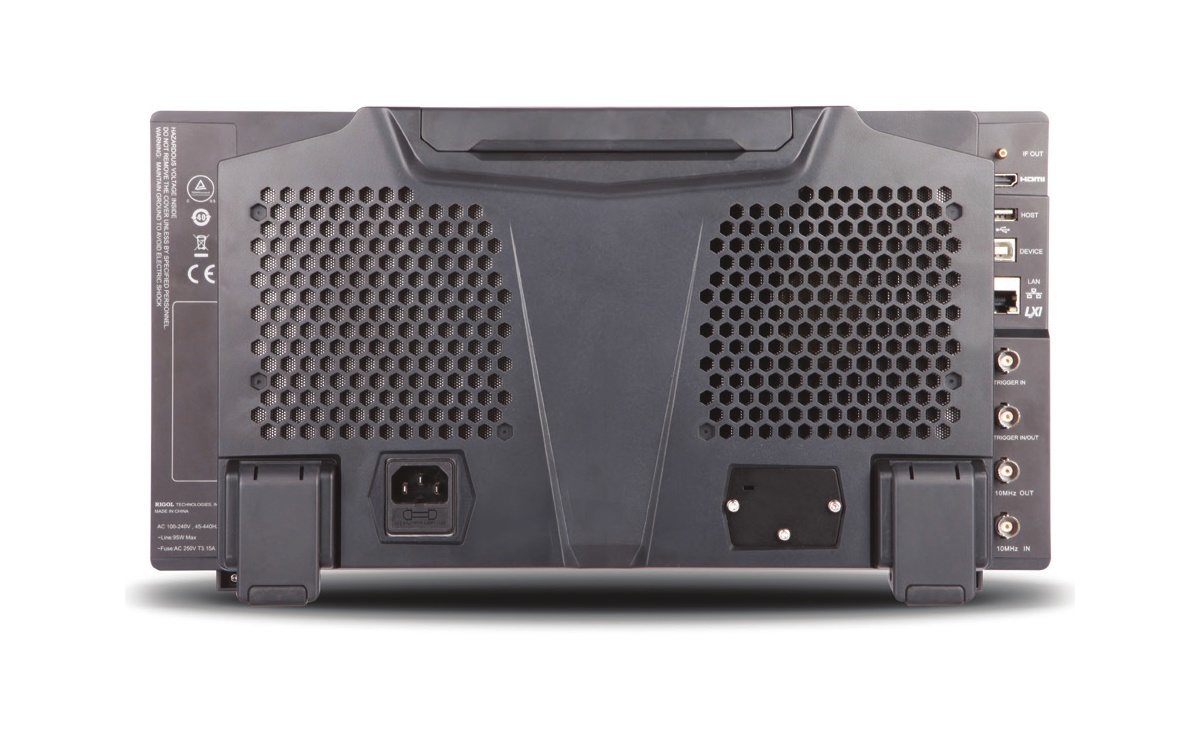

The RSA5000 features a 10.1" touchscreen for intuitive operation, while its compact design makes it suitable for both benchtop and field applications. Whether you're characterizing RF systems or testing wireless signals, this spectrum analyzer offers a new level of performance at an affordable price.
