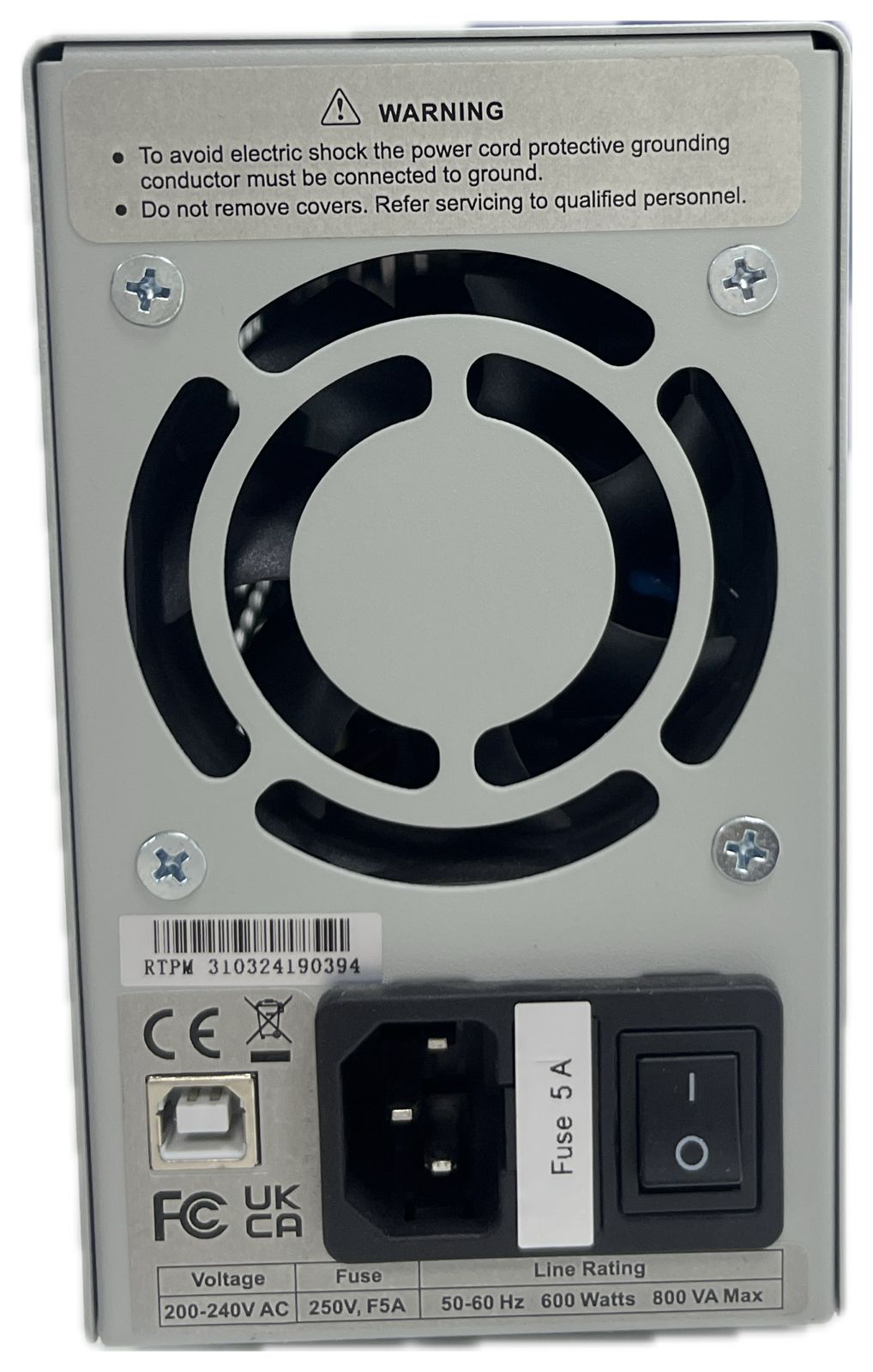

Image 3
Revine MFR Products

RTPM3103

Rs. 18700.00

The RTPM3103 is a 30V 10A, 300W DC power supply with a standard USB interface, designed for versatile laboratory and field applications. It includes a built-in multimeter and high-resolution features for precise measurements..

  • Detail
  • Special Features
  • Specification

The RTPM3103 is a versatile DC power supply that combines the functionality of a multimeter with advanced output monitoring and control. It offers a 2.8-inch TFT LCD display to clearly visualize output voltage, current, and power levels. With USB communication support (SCPI), it can be easily integrated into automated test systems. It features 150W or 300W output power, allowing for a range of applications, from simple to more complex tasks. The power supply is equipped with over-voltage and over-current protection to ensure safe operation in various testing environments. The built-in multimeter offers support for voltage, current, capacitance, resistance, and testing of diodes, making it a comprehensive solution for users in electronics testing, R&D, and education.

  • DC Power Supply with multimeter functionality

  • Compact design for easy portability

  • 2.8-inch TFT LCD display for clear output monitoring

  • USB communication interface supporting SCPI (Standard Commands for Programmable Instruments)

  • 150W/300W output power with high precision resolution

  • Resolution: 10mV (voltage) / 1mA (current)

  • List waveform editing output with 10 groups of editable timing output functions

  • Over-voltage and over-current protection for safe operation

  • Output voltage and current curve monitoring function for real-time analysis

Multimeter Specifications

  • 4 1/2 digits multimeter for high accuracy

  • Supports: Voltage, Current, Capacitance, Resistance, Continuity, and Diode Test

  • Product Name: RTPM3103: 30V 10Amps 300W DC Power Supply with Standard USB Interface

  • Output Voltage: 0 ~ 30V

  • Output Current: 0 ~ 10A

  • Output Power: 150W/300W

  • Resolution: 10mV (Voltage), 1mA (Current)

  • Display: 2.8-inch TFT LCD

  • Multimeter: 4 1/2 digits

  • Functionality: Voltage, Current, Capacitance, Resistance, Continuity, Diode Test

  • Waveform Editing: 10 groups of timing output functions

  • Protection: Over-voltage and over-current protection

  • USB Interface: SCPI support

  • Monitoring: Output voltage and current curve monitoring
