Dewetron

DEWE2‑A13

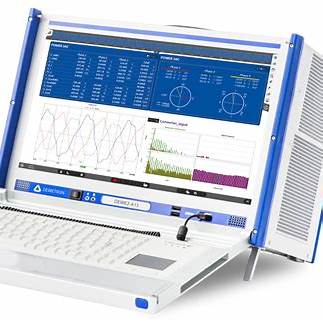

A compact, benchtop all-in-one data acquisition system offering modular flexibility with up to 13 TRION slots and 104 analog input channels. Integrates a 17″ display, keyboard, internal PC, and isolated power for versatile high-channel applications..

  • Detail
  • Special Features
  • Specification

The DEWE2‑A13 is a robust DAQ platform designed for large-scale measurement scenarios, fitting 13 TRION modules for simultaneous analog, digital, CAN, vibration, bridge, thermocouple, and counter channels. Its 17″ display and integrated PC housing simplify deployment in labs or field environments. The device supports synchronous data capture across modalities (video, GPS, etc.) through SYNC‑CLOCK, and it can be expanded to hundreds of channels using TRIONet or CPAD equipment.

Built-in isolated DC power enables safe operation in remote or industrial settings. With a sustained 90 MB/s storage rate and optional internal/external storage, it's suited for long-duration acquisitions. For power analysis needs, interchangeable TRION Power modules enable precise, multi-phase power measurement. All operations are managed by DEWETRON’s OXYGEN software, which supports real-time visualization, data analysis, file splitting, and multi-unit coordination.

  • High Channel Density: Supports up to 13 TRION modules, allowing for up to 104 analog input channels.

  • Integrated Workstation: Equipped with a 17″ display, hinged keyboard, and touchpad for standalone operation.

  • Isolated DC Power: Designed with internal isolation for safe use in industrial and remote environments.

  • Advanced Synchronization: Features SYNC‑CLOCK™ technology for synchronizing with TRION modules, video, GPS, FlexRay, and other time-critical inputs.

  • Gap-Free Recording: Offers up to 90 MB/s sustained data storage to internal hard drives or SSDs.

  • Flexible Expandability: Compatible with TRIONet front-end units and CPAD/EPAD modules to further scale input capacity.

  • Power Analyzer Ready: Can be configured with TRION Power modules to enable precision multi-phase power analysis with <0.03% measurement error.

Specification Details
TRION Module Slots 13
Analog Input Channels Up to 104
Display 17″ widescreen (hinged keyboard integrated)
Sampling Rate Up to 2 MS/s per channel
Data Storage Rate ~90 MB/s gap-free recording
Power Input Isolated DC; supports optional battery packs
Synchronization SYNC‑CLOCK™ for TRION, video, GPS, FlexRay etc.
Expandability Compatible with TRIONet, CPAD/EPAD modules
Power Analyzer Capability With TRION Power modules, error rate <0.03 %
Software OXYGEN measurement platform
Dimensions & Weight Approx. mid‑tower bench chassis (~15 kg)
