SEALEVEL | PCI Digital

DIO-32.PCIe

Rs. 73152.00

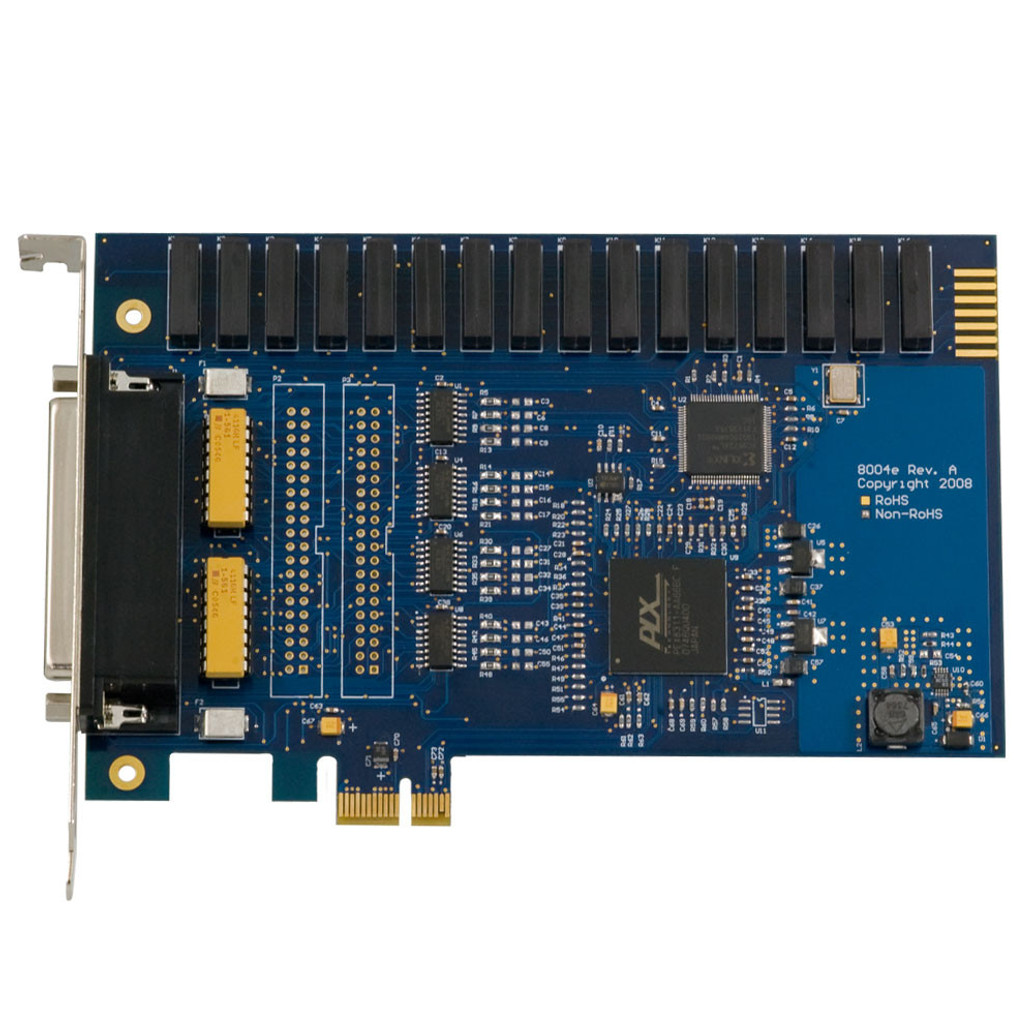

The DIO-32.PCIe is a PCI Express digital I/O card with 16 optically isolated inputs (3–13V) and 16 Reed relay outputs, designed for industrial automation and control applications requiring protection against voltage spikes and reliable low-current switching..

  • Detail
  • Special Features
  • Specification

  • Inputs rated: 3–13V DC (for 10–30V, see 8004He)

  • Outputs: Reed relays, normally open, close when energized

  • Isolation: Protects host system from voltage spikes and ground loops

  • Software: Sealevel SeaIO Classic drivers, includes Digital I/O Handbook for guidance

  • 16 optically isolated inputs (3–13V) to protect PCs and sensitive equipment from voltage spikes and ground loops

  • 16 Reed relay outputs providing long-life, normally open, dry contact switch closures

  • PCI Express X1 compliant, compatible with any PCI Express slot

  • Ideal for low-current switching and industrial digital I/O applications

  • Supported by Sealevel SeaIO Classic software drivers for easy Windows installation

  • Host Interface: PCI Express

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Storage Temperature: -50°C to 105°C (-58°F to 221°F)

  • Humidity Range: 10–90% RH, non-condensing
