SEALEVEL | USB Hubs & Isolators

SeaISO OEM USB Isolator

Now includes NABL Calibration Certificate.
Rs. 19304.00

The SeaISO ISO-1-OEM module offers robust 4 kV isolation for embedded applications, ensuring safe energy transfer and protection from surges between USB host systems and connected devices in commercial, industrial, and medical environments..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

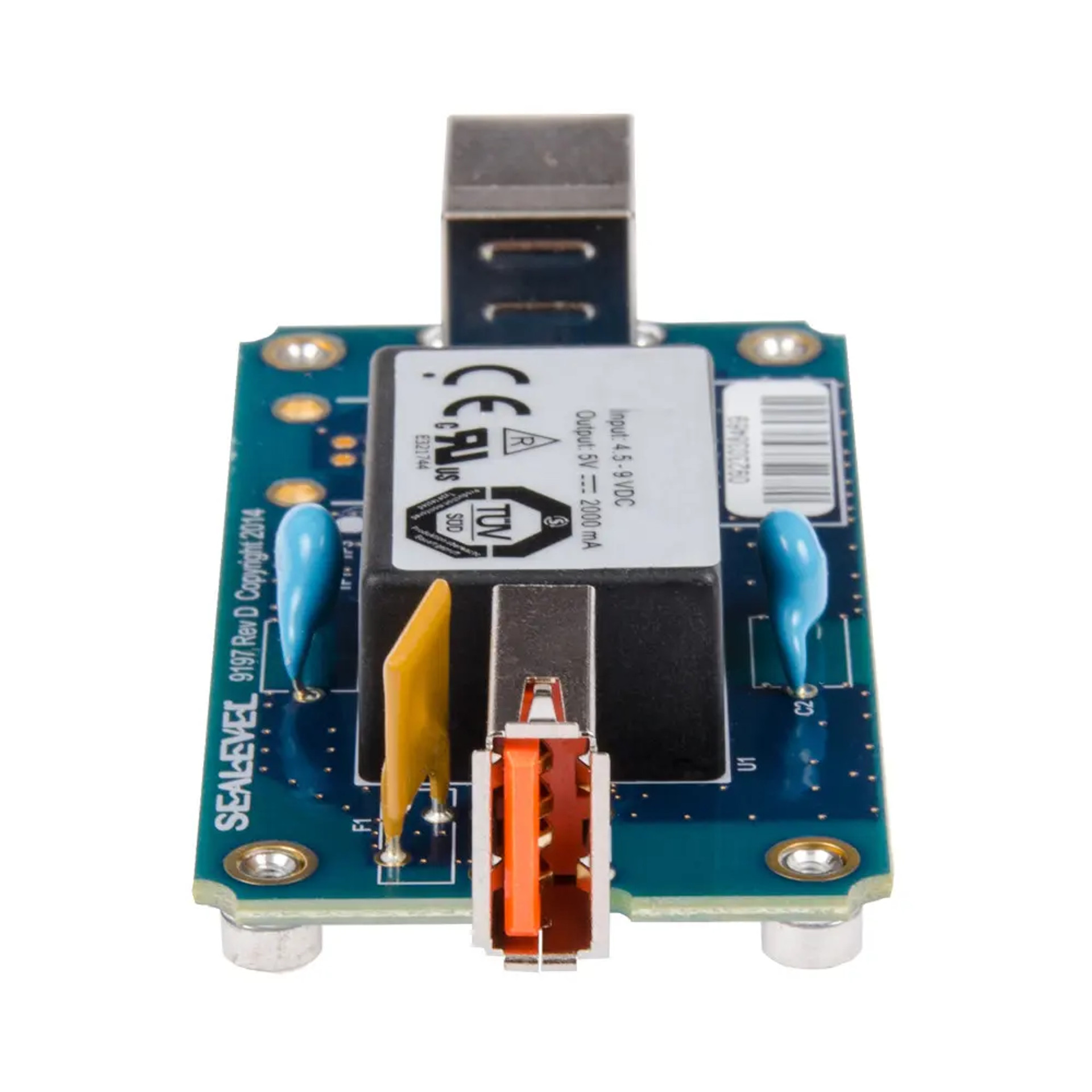

The SeaISO ISO-1-OEM is designed for embedded USB isolation, offering a simple yet effective solution for protecting host and field equipment from transients, surges, and interference. This isolator provides 4 kV of medical-grade isolation, ensuring safe and stable operation between the USB host control system and connected equipment.

The DC/DC design allows energy transfer across the isolation barrier, maintaining performance while safeguarding sensitive components. It delivers up to 300 mA to downstream USB devices when connected to standard 500 mA USB ports, and up to 500 mA when connected to higher power USB ports (1 A or more). The isolator is USB 2.0 compatible, and requires no additional drivers for easy installation.

For OEM applications, the SeaISO ISO-1-OEM provides simple mounting with M2 x 4mm threaded standoffs and is easily integrated into custom systems. Its high-retention connectors ensure stable, reliable connections, and the device operates within a wide temperature range to suit a variety of industrial and field setups.

  • 4 kV isolation (medical-grade) for data and power lines

  • USB bus-powered for energy-efficient operation

  • Provides 300 mA on 500 mA USB ports, 500 mA on 1 A USB ports

  • Supports USB 2.0 full-speed 12 Mbps data rates

  • High-retention USB connectors to prevent accidental disconnection

  • Compliant with CE, FCC, RoHS, and WEEE directives

  • No drivers required for easy plug-and-play integration with Windows and Linux systems

  • Includes M2 x 4mm threaded standoffs for easy OEM integration

  • Temperature range: -20°C to 60°C (-4°F to 140°F), with extended range options

Feature Details
Host Interface(s) USB
Max Data Distance 5 meters
Max Data Rate 12 Mbps (USB 2.0)
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Number of Ports 1
Power Requirement USB +5V @ 200 mA (Max)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
USB Specification USB 2.0 Compliant; 1.0 Compatible
Dimensions (Enclosure) 3.00" (L) x 1.50" (W) x 0.90" (H) (3.66" L with connectors)
Humidity Range 10-90% Relative Humidity/Non-Condensing
Mounting M2 x 4mm threaded standoffs included for OEM mounting
