DC Power

Rigol DP932U

Rs. 79650.00

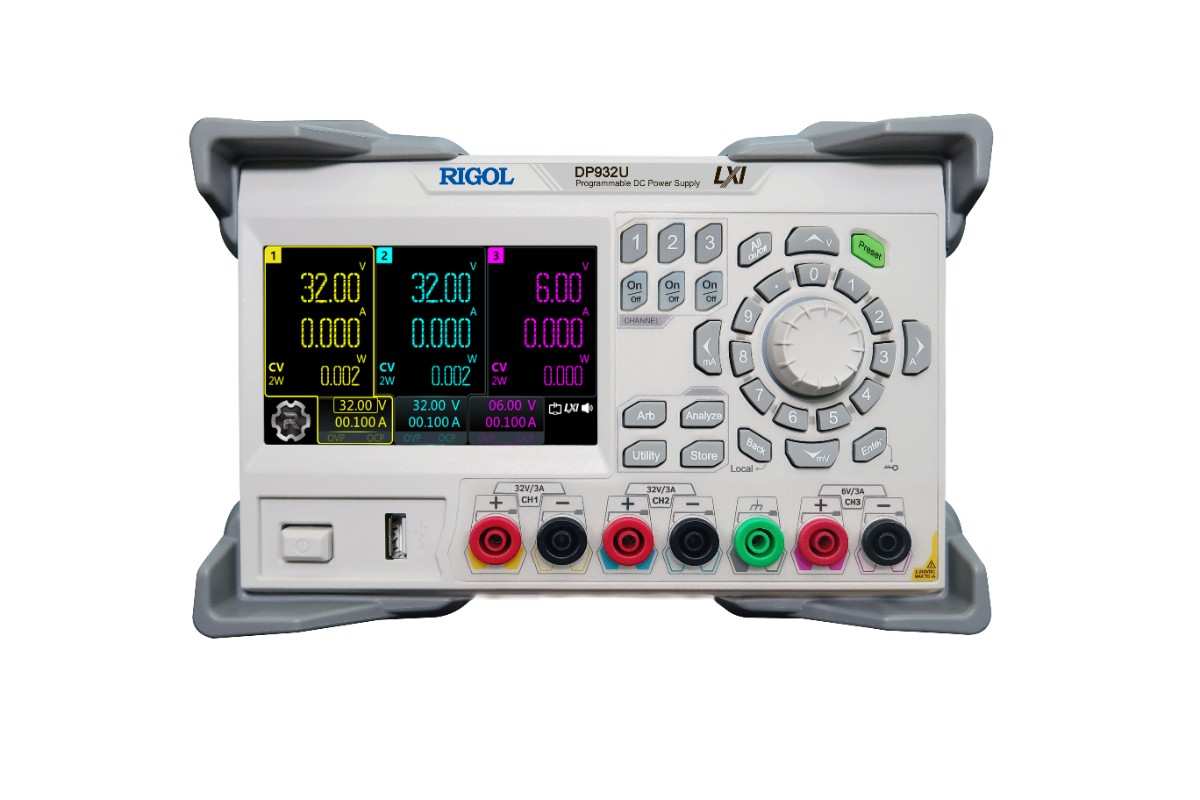

The Rigol DP932U is a high-quality programmable DC power supply with three isolated independent output channels: 0-32 V / 3 A (CH1), 0-32 V / 3 A (CH2), and 0-6 V / 3 A (CH3), delivering a total maximum power output of 210 W. It features front-panel safety sockets, a 4.3″ LCD color touch screen, and the ability to configure the output channels in series/parallel for added flexibility. The power supply includes an NABL Calibration Certificate and a 3-year warranty..

  • Detail
  • Special Features
  • Specification

✨ Key Benefits (Cause → Effect)
Independent channels → separate specs per load → fewer supplies on the bench.
Touch UI → quick tweaks, clear reads → fewer mistakes under pressure.
Live curves → spikes and sags visible → faster fixes and safer limits.

⚙️ Core Capabilities (Tight, Task → Outcome)
Programmable voltage/current curves → automated steps → repeatable tests.
Output signal analysis → trends at a glance → issues caught early.
Remote control (SCPI over USB/LAN/Digital I/O) → script runs → clean logs for reports.

➕ Flexible Pairing (CH1 & CH2)
Series inside → higher voltage from two → drive stacked rails neatly.
Parallel inside → higher current from two → feed hungry loads cleanly.
Internal routing → no jumpers → tidier, safer wiring.

🔒 Safety & Education Fit
Front-panel safety sockets → firm grip, correct polarity → protect probes and DUTs.
Isolated channels → no cross-talk → mixed circuits stay stable.
Simple UI → students learn faster → instructors trust results.

📦 Power & Config (Numbers → Value)
Up to 210 W total → covers most bench and teaching rigs.
Lab to industry → same box, same workflow → smoother scaling.

🧪 Where It Fits (Use → Payoff)
University benches → guided labs → consistent pass/fail gates.
R&D bring-up → soft ramps, step loads → protect fresh silicon.
Production fixtures → repeatable profiles → reliable QA data.

✅ Bottom Line
Need multi-output precision, touch-simple control, and easy automation?
Choose DP932U → wire once, tap to run, and let the curves tell the truth.

🖥️ Large Color Touch Screen
4.3″ LCD touch → clear volts/amps/watts → quick reads at a glance.
Live curves → spikes and sags visible → faster fault finding.

🔌 Isolated, Independent Channels (3x)
Each output isolated → safer mixed tests → no cross-talk between loads.
Set volts/amps per channel → one supply, many jobs.

➕ CH1 & CH2: Series / Parallel Inside
Series tie → higher voltage from two → run bigger stacks neatly.
Parallel tie → higher current from two → feed hungry boards cleanly.
All internal → no jumper mess → tidier, safer bench.

🛡️ Front-Panel Safety Sockets
Secure jacks → firm grip, correct polarity → protect probes and DUTs.
Front access → quicker swaps → fewer handling errors.

📈 Display Signal Curves (Real Time)
Voltage/current/power traces → trends at a glance.
Catch inrush peaks → set current limits right → protect components.

⏱️ Programmable Timer (Up To 100 Steps)
Schedule V/I changes → hands-free profiles → perfect for burn-in and stress tests.
Save and repeat → consistent results → easy A/B comparisons.

🌐 Remote Control: SCPI / LabVIEW
USB, LAN, Digital I/O → script and log from your PC.
SCPI commands → fast automation → clean data for reports.
LabVIEW ready → drops into existing ATE rigs without fuss.

✅ Bottom Line
Need three safe outputs, touch-simple control, and easy automation? Pick DP932U.
Wire once → tap to run → watch curves tell the truth.

Specification Rigol DP932U
Outputs 3
Output 1 0 to +32 V / DC with max. 3 A
Output 2 0 to +32 V / DC with max. 3 A
Output 3 0 to +6 V / DC with max. 3 A
Ground Sharing Output 1 sole GND, Output 2 + Output 3 shared GND
Output Power (max.) 210 W
Overtemperature shutdown 55 °C
Working Temperature 0 °C to 40 °C
Cooling Method Fan cooling
Output Voltage Output 1: 0 to +32 V, Output 2: 0 to +32 V, Output 3: 0 to +6 V
Accuracy (Voltage) ±0.1% + 20 mV
Resolution (Voltage) 1 mV
Overvoltage Protection 1 mV to 33 V
Load Regulation (Voltage) < 0.01% + 2 mV
Line Regulation (Voltage) < 0.01% + 2 mV
Ripple and Noise (Voltage) < 350 μV rms / 2 mVpp
Output Current Output 1: 3 A, Output 2: 3 A, Output 3: 3 A
Accuracy (Current) ±0.2% + 10 mA
Resolution (Current) 1 mA
Overcurrent Protection 0.1 mA to 5.5 A (Output 1), 0.1 mA to 2.2 A (Output 2), 0.1 mA to 2.2 A (Output 3)
Load Regulation (Current) < 0.01% + 250 μA
Line Regulation (Current) < 0.01% + 250 μA
Ripple and Noise (Current) < 2 mA rms
Display 4.3″ LCD Color Touch Screen
Resolution (Display) 320 × 240 Pixel
Additional Interfaces USB Host, USB Device, LAN, Digital I/O (optional)
Dimensions (W × H × D) 23.9 cm × 15.7 cm × 41.8 cm
Weight 9.0 kg
Input 230 V/AC, 115 V/AC, or 100 V/AC (adjustable)
Tracking Function Yes (for Output 1 and Output 2)
