Dewetron

PU[REC]

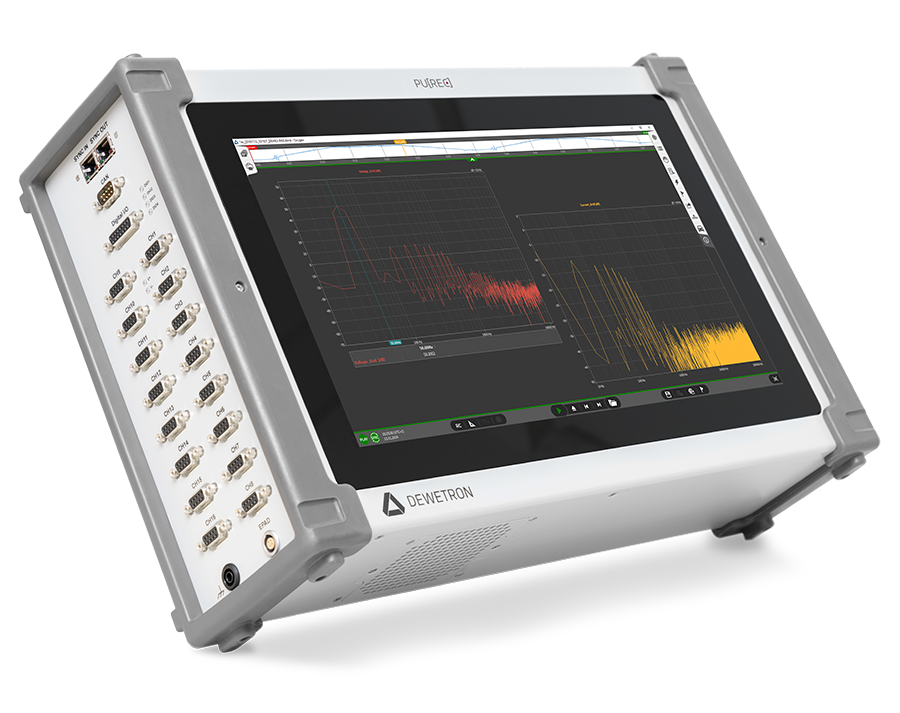

PU[REC] is a powerful, compact, and ready-to-use data logger designed for reliable, multi-source measurement and recording. With up to 1 TB internal SSD, 20 digital input channels, and real-time data display via HDMI, it's ideal for mobile test benches, industrial monitoring, and vehicle testing..

  • Detail
  • Special Features
  • Specification

PU[REC] is designed as a standalone data logging system that can be deployed quickly and reliably in demanding environments. It can operate independently or in conjunction with TRIONet3 or NEXDAQ front-end units. Once connected to sensors and configured via OXYGEN, it starts recording at the push of a button.

Data is continuously logged to the internal SSD and can be exported via USB or Ethernet. Real-time data monitoring is supported using the HDMI port, allowing users to view live measurements in the field. Its 20 digital inputs can also be used for signal logging or event triggering.

The PU[REC] system is ideal for applications requiring autonomous data capture, such as long-term durability testing, electric vehicle field tests, industrial machinery monitoring, or remote diagnostics.

  • Records and stores up to 1 TB of measurement data

  • 20 digital inputs (16 digital, 4 counter) and 1 analog input for trigger

  • Real-time visualization through HDMI output

  • Flexible data access via USB, Ethernet, and Wi-Fi

  • Supports both internal and external GNSS sources

  • Compatible with multiple TRION(3) modules via connected front-ends

  • OXYGEN-compatible with automatic configuration recognition

  • Compact and fanless design with rugged metal housing

  • Simple push-button operation for start/stop logging

  • Battery-buffered real-time clock for timestamp accuracy

Specification Details
Internal Storage Up to 1 TB SSD
Digital Inputs 16 digital, 4 counter inputs
Analog Inputs 1 trigger input
GNSS Support Internal and external GNSS compatibility
Interfaces Ethernet, USB, Wi-Fi
Video Output HDMI for real-time display
Synchronization Compatible with PTP, GPS, IRIG (via front-end)
Supported Modules Connects to TRIONet3, NEXDAQ, and TRION(3) systems
Operating System Linux-based firmware
Software Compatibility OXYGEN (auto-detection and configuration)
Power Supply 9–36 VDC input
Clock Battery-buffered RTC
Housing Rugged, compact, fanless aluminum design
Operation Control Start/Stop push button with LED status indicator
