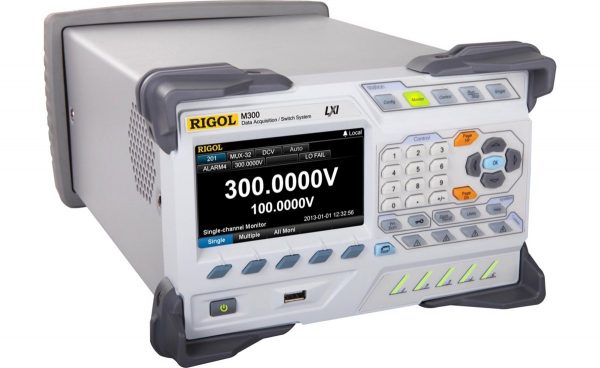

Rigol M302

Rs. 207975.00

The M301 Data Acquisition System is designed for automated multichannel measurement and switching applications, ideal for environmental measurements, voltage, frequency, and resistance measurements. It includes a MC3065 DMM module and MUX, providing versatile solutions for research and production testing. With modular structure and precision measurement, it is perfect for product performance testing and automated testing during production..

  • Detail
  • Special Features
  • Specification

🧩 Modular Build (Slot → Skill)
Plug cards you need → DMM, multiplexers, matrix, actuators → custom rig without rewiring.

📚 Comprehensive Measurements (Function → Value)
6½-digit DMM inside → accurate reads on temp, volts, ohms, amps, freq → high-quality data from many sensors.

đŸ›Ŗī¸ High Channel Density (Need → Scale)
Up to 320 switch channels per mainframe → many points scanned fast → big systems stay tidy.

⏱ī¸ Environmental & Burn-In (Action → Result)
Interval scans → long runs logged → drift and failures show early.
Multiple sensors at once → fewer passes → quicker sign-off.

đŸ–Ĩī¸ Easy Front Panel (See → Act)
Clear menus + 4.3″ color LCD → set once, run right → fewer mistakes under pressure.

🌐 Remote & Integration (Plug → Perform)
USB / LAN / RS-232 / GPIB → SCPI control from PC → script tests, log data, standardize workflows.

🏭 Where It Fits (Use → Payoff)
R&D benches → fast reconfiguration → faster experiments.
Product performance labs → repeatable scans → comparable results.
Production lines → automated routes → reliable, hands-off testing.

🧩 Modular Structure

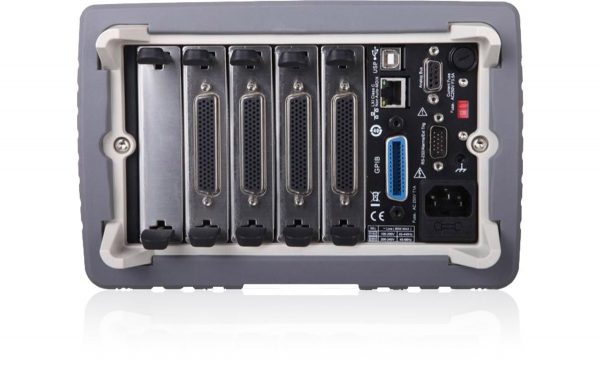

5 open slots → add DMM, multiplexers, matrix, actuators, multifunction → configure for many points and signals without rewiring.

đŸŽ¯ Advanced Measurement Capability
Built-in 6½-digit DMM → precise reads on DCV, DCI, ACV, ACI, 2-wire/4-wire R, FREQ, PERIOD, TEMP (thermocouple, thermistor, RTD) → one chassis, many sensors.

đŸ–Ĩī¸ High-Resolution Display
4.3″ color LCD + backlit keys → menus stay clear → setup stays simple even in low light.

🌐 Remote Control Options
RS-232, USB, LAN, GPIB → plug into ATE → SCPI control, logging, and easy integration.

đŸ›Ŗī¸ Flexible Testing
Up to 320 switch channels per mainframe → big matrices, many DUTs → complex scans made tidy.
Interval scanning → scheduled steps → automation without babysitting.
USB data logging → up to 100,000 time-stamped readings → proof you can replay.

⚡ Actuator Systems
Actuator support (≤300 Vrms / 2 Arms, 60 VA) → drive relays/loads directly → close loops inside the frame.

Feature Specification
Measurement Function DCV, DCI, ACV, ACI, 2WR, 4WR, PERIOD, FREQ, TEMP
Display 4.3-inch Color LCD
Channels per Mainframe Up to 320 Switch Channels
DMM 6½ digit DMM, supports multiple measurement functions
Data Logging USB data logging with up to 100,000 time-stamped readings
Power Supply for Actuators 300 Vrms / 2 Arms, 60 VA
Interfaces USB Device, USB Host, GPIB, LAN, RS232
Temperature Measurement Thermocouple, Thermistor, RTD
