Rigol DM3058E Digital Multimeter

Rs. 60534.00

High-precision 6½ digit true RMS multimeter for voltage, current, resistance, capacitance, and frequency measurements. Offers a 10 kSa/s sampling rate, 512k readings history, and a 17.8 cm touch display with 1024×600 resolution. Now includes NABL Calibration Certificate. 3 years warranty.

  • Detail
  • Special Features
  • Specification

🔢 Max Reading & Speed
2,400,000 counts (6½ digits) → finer steps → tighter accuracy.
10 kSa/s sampling → high-speed captures → trends and glitches show up fast.

🗄️ Memory For Logging
512k readings history (volatile) → scroll long runs.
10 groups × 5000 readings (non-volatile) → power down, data stays.

🖥️ Touch Display & Readability
7″ TFT (1024×600) → big, clear digits and graphs → setup and review go quicker.
Max display 6½ digits → small changes stay visible.

📚 Measurement Functions (Range → Use)
DCV: 200 mV–1000 V → rails to mains checks.
ACV: 200 mV–750 V → line and inverter work.
DCA/ACA: 200 µA–10 A → sleep currents to heavy loads.
Resistance: 200 Ω–10 MΩ → shorts through high nets.
Capacitance: 2 nF–100 µF → filters and timing parts.
Frequency: 3 Hz–1 MHz → slow lines to switch clocks.

🔌 Connections (Plug → Automate)
USB Device, USB Host, 10/100 LAN, GPIB, External Trigger → SCPI control, logging, sync → drops into any rig.

⚡ Power & Safety
230 V/50 Hz or 110 V/60 Hz mains → global ready.
CAT II / 600 V → safer mains-adjacent work.

📦 Size & Weight
290.5 × 231.6 × 107.0 mm (11.44″ × 9.12″ × 4.21″) → compact bench fit.
2.5 kg (5.5 lb) → easy to move yet stable.

🛡️ Warranty
3 years → long coverage → lower total cost of ownership.

🎯 High Accuracy
6½-digit resolution + DCV to 0.030% → tight numbers → trust every measurement.

📚 Wide Measurement Range
DCV, DCI, ACV, ACI, resistance, capacitance, frequency → one meter → most jobs covered.

⚡ Fast Sampling
10 kSa/s → rapid acquisition → catch trends and glitches in real time.

🗄️ Memory For Logging
512k readings history → scroll back through runs.
Non-volatile up to 5000 readings → power down, data stays.

🖥️ Touch Display
7″ (1024×600) touch → swipe, zoom, select → clearer graphs, faster setup.

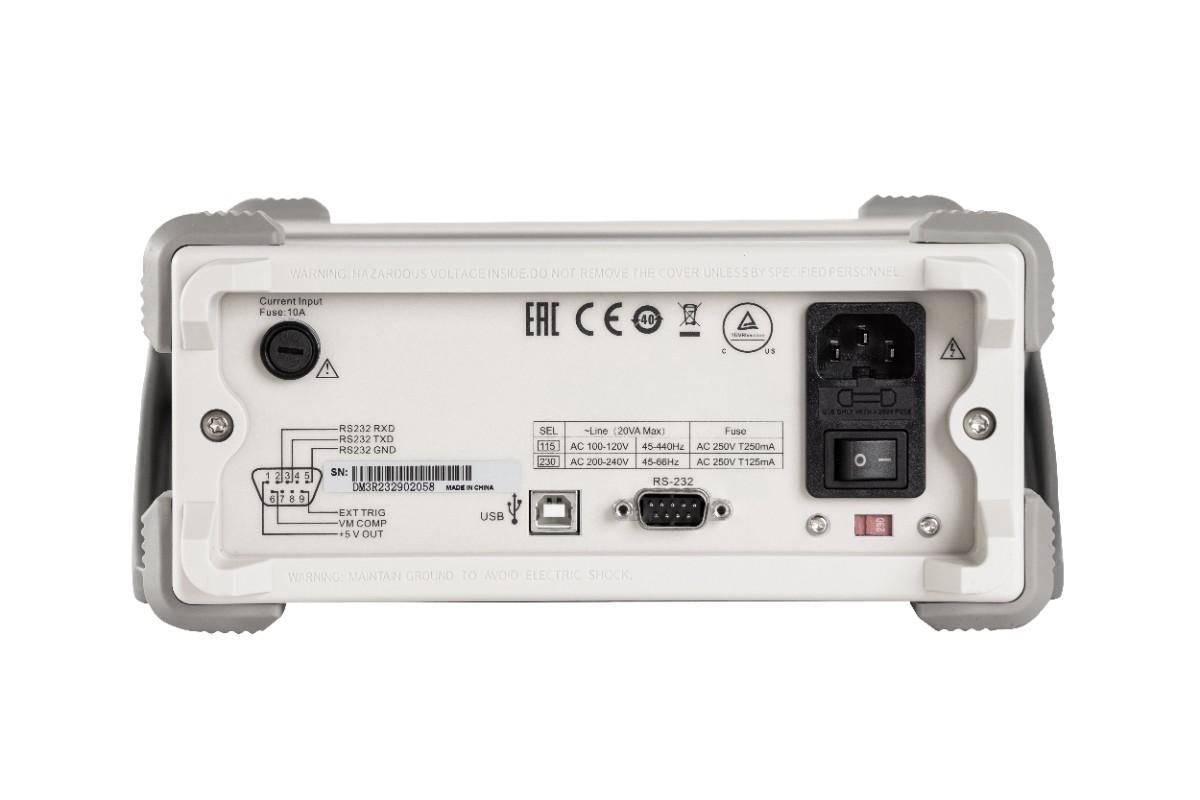

🔌 Versatile Interfaces
RS-232, USB Device/Host, 10/100 LAN, GPIB, External Trigger → plug into any rig → SCPI automate, sync, and log.

🛡️ Safety Standard
CAT II / 600 V → safer work on mains-adjacent circuits.

⏸️ Convenience Features
Data Hold → freeze the value you need.
Auto Power-Off → save energy, extend life.

Feature Specification
Max Reading 2,400,000 counts (6½ digits)
Sampling Rate 10 kSa/s
Memory Depth (volatile) 512k readings history
Memory Depth (non-volatile) 10 groups of 5000 readings
Display 17.8 cm (7 inches) TFT color LCD, 1024×600 pixels
Interfaces USB Device, USB Host, 10/100MBit LAN, GPIB, External Trigger
Max. Voltage Measurement 1000 V (DCV)
Max. Current Measurement 10 A (DCI, ACI)
Resistance Measurement 200 Ω to 10 MΩ
Capacitance Measurement 2 nF to 100 µF
Frequency Measurement 3 Hz to 1 MHz
Accuracy (DCV) 0.030%
Safety CAT II/600V
Weight 2.5 kg (5.5 lbs)
Dimensions 290.5 mm × 231.6 mm × 107.0 mm (11.44″ × 9.12″ × 4.21″)
Warranty 3 years
