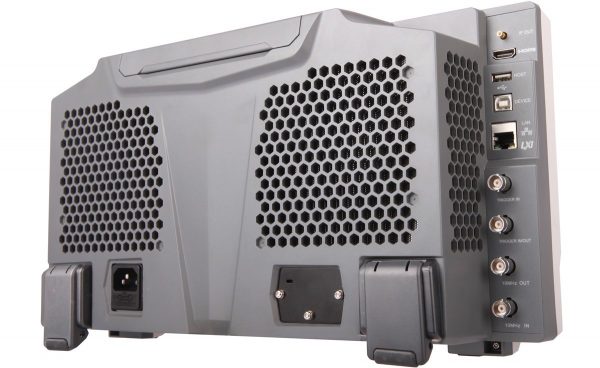

Image 1

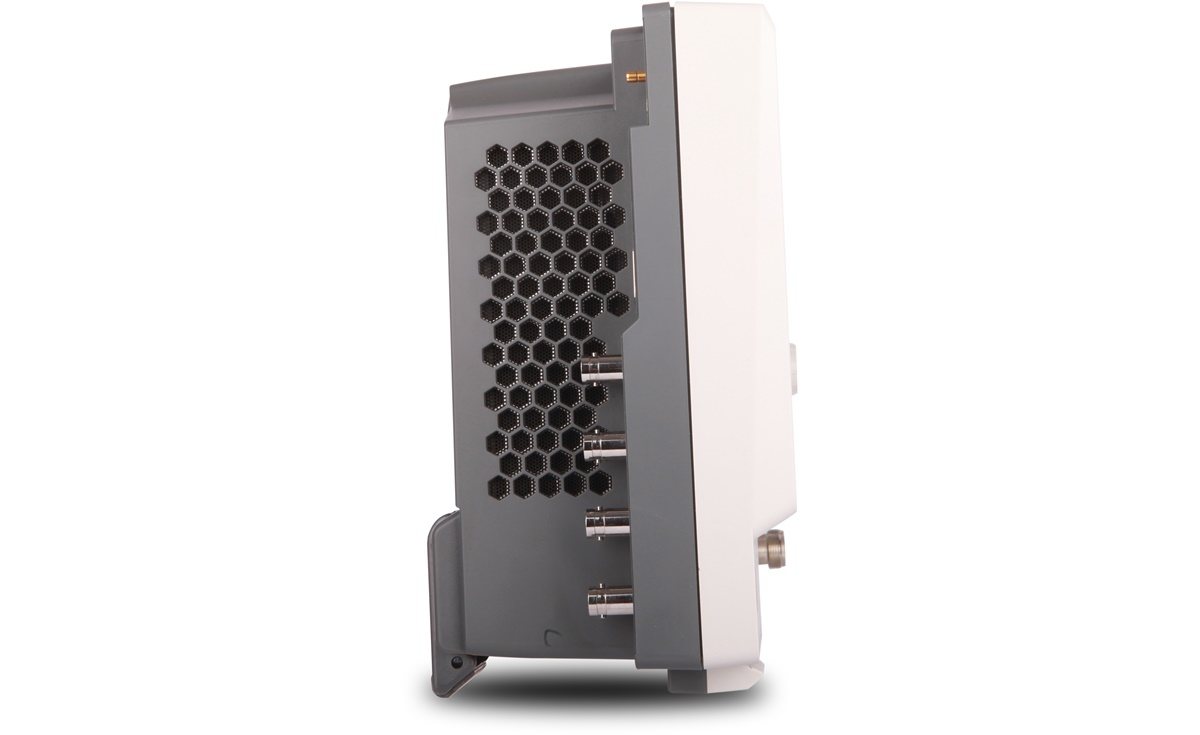

Image 2

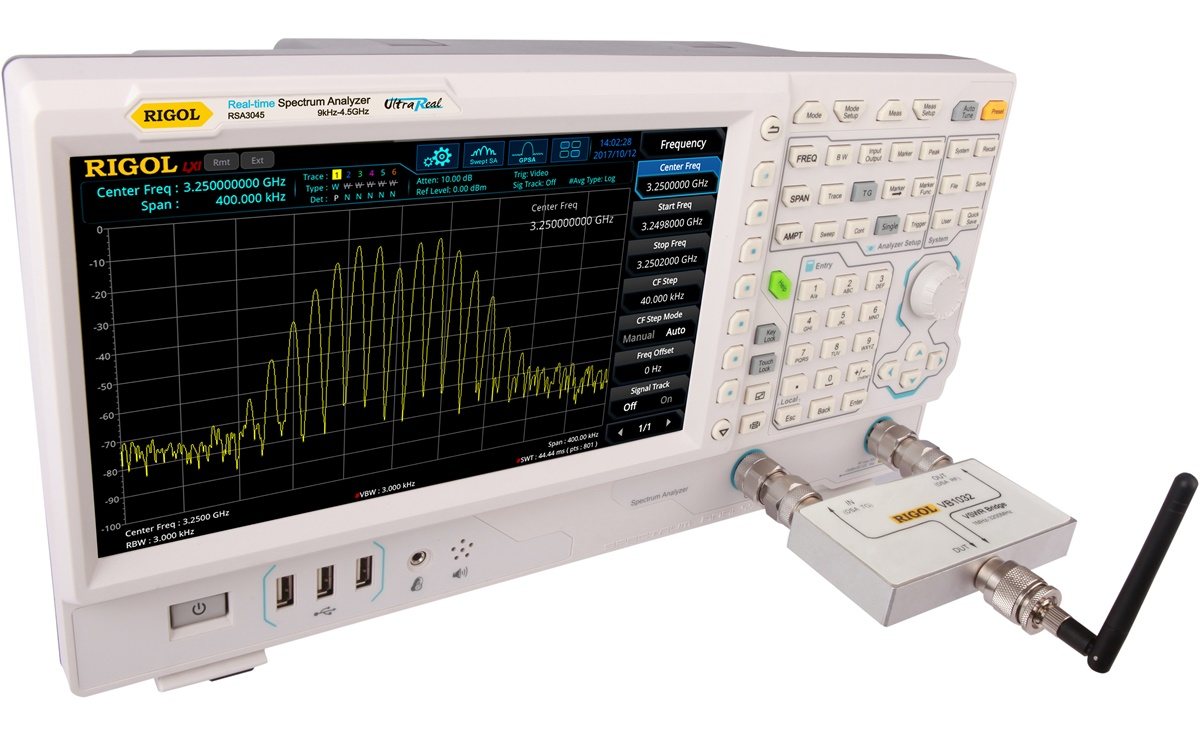

Image 3
Spectrum Analyzers

Rigol RSA3030

Rs. 530823.00

The Rigol RSA3000 series is a high-performance real-time spectrum analyzer offering 9 kHz to 3 GHz bandwidth, with up to 40 MHz real-time bandwidth and a 10 Hz – 10 MHz RBW. It features a 25.6 cm (10.1") touchscreen with 1024×600 pixels and comes with a tracking generator (100 kHz – 3 GHz). Ideal for RF testing and wireless production, the RSA3000 ensures precise monitoring of complex RF systems, including WiFi, Bluetooth, and other modern wireless technologies. It includes a 3-year warranty for peace of mind..

  • Detail
  • Special Features
  • Specification

The Rigol RSA3000 series is designed for high-precision RF spectrum analysis, making it a perfect tool for professionals working in the fields of wireless communication, RF systems, and IoT development. Its real-time spectrum analyzer capabilities allow users to capture and analyze complex signals, even those lasting as briefly as 7.45 µs.

The 10 MHz real-time bandwidth ensures that the analyzer can monitor a wide range of signals, while the 1 Hz resolution bandwidth allows for exceptionally fine detail in spectral measurements. Additionally, with the tracking generator and VSWR measurements, engineers can accurately characterize RF components, ensuring their designs meet EMI and regulatory compliance standards.

With a low noise floor of -161 dBm, the RSA3000 provides high sensitivity for detecting weak signals in noisy environments, making it ideal for tasks such as spectrum monitoring, signal interference detection, and RF troubleshooting.

  • Real-Time Spectrum Analysis: Capture and analyze signals with 7.45 µs 100% POI, ensuring no signal is missed.

  • Frequency Range: 9 kHz – 3 GHz (RSA3030) or 9 kHz – 4.5 GHz (RSA3045), with 10 Hz frequency resolution.

  • Real-Time Bandwidth: 10 MHz standard, with optional 25 MHz and 40 MHz bandwidth options for enhanced analysis.

  • Resolution Bandwidth (RBW): 10 Hz – 10 MHz, with 1 Hz optional for ultra-precise measurements.

  • Noise Performance: DANL as low as -136 dBm (down to -161 dBm with an optional pre-amplifier).

  • Tracking Generator: 100 kHz – 3 GHz, supporting VSWR measurements and accurate signal characterization.

  • Display: 10.1” TFT-Color-LCD touchscreen with 1024 × 600 pixels, offering clear visualizations.

  • EMI Compliance Testing: Built-in 9 kHz, 120 kHz, and Quasi-Peak filters and detectors for EMI pre-compliance.

  • Advanced Triggering: Frequency-Mask-Trigger, IF-Power-Level-Trigger, and external triggers for complex RF signal analysis.

  • Expandable Options: Extend functionality with 40 MHz Real-Time-Bandwidth, Pre-Amplifier, High Stability Clock, and EMI Pre-compliance Software.

  • Frequency Range: 9 kHz – 3 GHz (RSA3030) or 9 kHz – 4.5 GHz (RSA3045)

  • Real-Time Bandwidth: 10 MHz standard, optional 25 MHz, 40 MHz

  • Frequency Resolution: 10 Hz (1 Hz optional)

  • Resolution Bandwidth (RBW): 10 Hz to 10 MHz

  • DANL (Displayed Average Noise Level): -136 dBm (down to -161 dBm with optional pre-amplifier)

  • Tracking Generator: 100 kHz – 3 GHz (optional for RSA3030-TG and RSA3045-TG models)

  • EMI Filters & Detectors: 200 Hz, 9 kHz, 120 kHz, 1 MHz, Quasi-Peak

  • Display: 10.1” TFT-Color-LCD with 1024 × 600 pixels

  • Interfaces: USB-Host, USB-Device, LAN, GPIB

  • Dimensions: 410 mm × 224 mm × 135 mm

  • Weight: 4.65 kg

Model Overview

Model Max. Bandwidth EMI/QuasiPeak Advanced Measurement Kit Preamplifier Tracking Generator
RSA3030 3 GHz Option Option Option
RSA3030-TG 3 GHz Option Option Option Yes
RSA3045 4.5 GHz Option Option Option
RSA3045-TG 4.5 GHz Option Option Option Yes
