Spectrum Analyzers

Rigol DSA832E-TG

Rs. 321963.00

The Rigol DSA832E-TG is a high-quality spectrum analyzer with a frequency range of 9 kHz to 3.2 GHz and Tracking Generator. This lightweight and compact device is perfect for portable applications and provides high precision with a minimum displayed average noise level of -148 dBm. The analyzer features a 10 Hz minimum resolution bandwidth and includes an NABL calibration certificate. Ideal for RF applications, it is a versatile tool with advanced measurement capabilities and comes with a 3-year warranty..

  • Detail
  • Special Features
  • Specification

The Rigol DSA832E-TG is designed for professionals who need a portable yet powerful spectrum analyzer for RF testing. The analyzer’s high-performance specifications—including 10 Hz RBW, low phase noise, and high dynamic range—make it suitable for applications in communications, signal analysis, and wireless technologies.

With a frequency range of up to 3.2 GHz, the DSA832E-TG is capable of covering a wide range of RF signals, from Wi-Fi and Bluetooth to RF component testing. The inclusion of the tracking generator enhances its capability for testing RF filters, amplifiers, and VSWR measurements.

The device is equipped with an intuitive graphical interface and auto functions, allowing engineers to quickly acquire signals and make adjustments without requiring extensive manual settings. Its NABL calibration certificate further ensures that the device meets industry standards, making it perfect for calibration and compliance testing in various RF applications.

  • Frequency Range: 9 kHz to 3.2 GHz.

  • Display Performance: -148 dBm (typical) displayed average noise level for high sensitivity.

  • Phase Noise: <-90 dBc/Hz at a 10 kHz offset for enhanced signal analysis.

  • Minimum Resolution Bandwidth: 10 Hz, enabling fine resolution for accurate measurements.

  • Tracking Generator: Up to 3.2 GHz included for DSA832E-TG models for precise RF component testing.

  • Ease of Use: Large 8-inch display (800×480 resolution) with intuitive Auto Tune, Auto Range, Auto Scale, and Auto Couple features, making it easy to acquire and match signals.

  • Advanced User Interface: A graphical interface that simplifies parameter adjustments and improves accessibility.

  • Calibration Certificate: Comes with an NABL Calibration Certificate for added reliability and accuracy in measurements.

  • Portable: The compact design makes it an excellent choice for field applications and portable RF testing.

  • Warranty: 3 years warranty, ensuring durability and peace of mind.



    Spectrum compare

    10 Hz RBW

    AM Signal Demodulation

    Peak table function

    EMI Measurement (option)

  • Frequency Range: 9 kHz – 3.2 GHz

  • Resolution Bandwidth (RBW): 10 Hz minimum

  • Tracking Generator: Up to 3.2 GHz (standard for DSA832E-TG)

  • Displayed Average Noise Level (DANL): -148 dBm (typical)

  • Phase Noise: <-90 dBc/Hz at 10 kHz offset

  • Display: 20.3 cm (8-inch) TFT Color LCD, 800 × 480 pixels

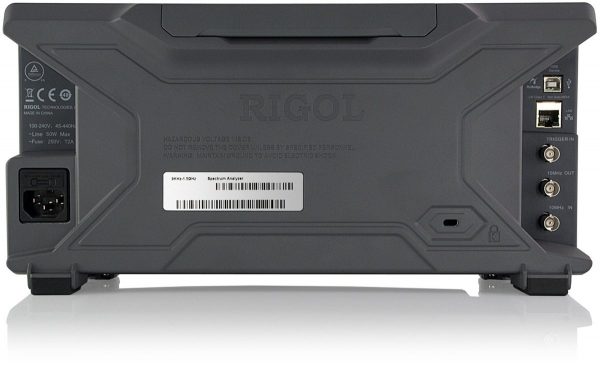

  • Interfaces: USB-Host, USB-Device, LAN, GPIB

  • Dimensions: 410 mm × 224 mm × 135 mm

  • Weight: 4.65 kg

  • Warranty: 3 years

Model Overview

Model Max. Bandwidth EMI/QuasiPeak Advanced Measurement Kit Preamplifier Tracking Generator
DSA815 1.5 GHz Optional Optional Standard No
DSA815-TG 1.5 GHz Optional Optional Standard Yes
DSA832E 3.2 GHz Optional Optional Standard No
DSA832E-TG 3.2 GHz Optional Optional Standard Yes
DSA832 3.2 GHz Optional Optional Standard No
DSA832-TG 3.2 GHz Optional Optional Standard Yes
DSA875 7.5 GHz Optional Optional Standard No
DSA875-TG 7.5 GHz Optional Optional Standard Yes
