Spectrum Analyzers

Rigol DSA832-TG

Rs. 706053.00

The Rigol DSA832-TG Spectrum Analyzer offers premium performance with a frequency range from 9 kHz to 3.2 GHz and an integrated Tracking Generator. It provides high sensitivity with a DANL from -135 dBm to -161 dBm, excellent phase noise of -80 to -98 dBc/Hz at 10 kHz offset, and a wide bandwidth range with 10 Hz minimum RBW. Ideal for RF applications, it also includes an NABL Calibration Certificate and comes with a 3-year warranty for reliable long-term use..

  • Detail
  • Special Features
  • Specification

✨ What It Is
Portable spectrum analyzer with tracking generator → you scan RF → you see clean, reliable spectra.

🧠 Digital IF Inside
Stable architecture → fewer spurs → repeatable numbers you can trust.

🎯 Tracking Generator Built In
Sweep parts and paths → align filters, cables, and amps → fix gain/match faster.

🤫 High Sensitivity (DANL)
Down to ~−161 dBm with preamp → weak signals stand up → interference gets found early.

📡 Frequency Span
~100 Hz → 3.2 GHz → narrow to wide sweeps → lab and field both covered.

🎚️ Fine Resolution (RBW)
Down to 10 Hz → close-in details appear → tiny offsets read clearly.

🖥️ Clear, Big Display
8″, 800×480 screen → traces look obvious → menus feel simple → fewer missteps.

🤖 Auto Helpers
Auto Tune / Range / Scale / Couple → quick lock on targets → less knob work, faster answers.

🧪 Where It Fits
RF components → verify passbands and notches.
Comms systems → spot carriers, spurs, and drift.
Signal hunts → isolate noise sources in crowded bands.



📡 Wide Frequency Reach
9 kHz → 3.2 GHz → one box, many bands → lab and field covered.

🤫 High Sensitivity (DANL)
−135 to −161 dBm (typ.) → very low noise floor → weak signals stand out.

🧼 Clean Close-In View (Phase Noise)
−80 to −98 dBc/Hz @ 10 kHz → tighter skirts → precise reads near carriers.

🎯 Amplitude Accuracy
<1.5 dB to <0.8 dB (nom.) → levels stay honest → comparisons hold up.

🎚️ Fine Resolution (RBW)
10 Hz → 1 MHz → narrow for detail → wide for fast scans.

🔗 Tracking Generator
Sweeps to 3.2 GHz → align systems → test filters, cables, components quickly.

🧠 Digital IF Engine
Stable architecture → fewer spurs → repeatable measurements.

🖥️ Clear Display
8″ TFT (800×480) → traces read easily → menus feel simple.

🤖 Auto Helpers
Auto Tune / Range / Scale / Couple → quick lock on signals → less knob work.

🔌 Connectivity
USB / LAN / GPIB → move data easily → script and control remotely.

📜 Certified Accuracy
NABL calibration certificate → verified numbers → audit-ready reports.

🛡️ Warranty
3-year coverage → long-term reliability → lower ownership risk.

  • Frequency Range: 9 kHz – 3.2 GHz

  • DANL (Displayed Average Noise Level):

    • 9 kHz to 100 kHz: <-120 dBm (typ.)

    • 100 KHz to 5 MHz: <-135 dBm, <-138 dBm (typ.)

    • 5 MHz to 3.2 GHz: <-140 dBm, <-144 dBm (typ.)

    • With Preamplifier:

      • 9 kHz to 100 kHz: <-152 dBm (typ.)

      • 100 KHz to 5 MHz: <-152 dBm, <-155 dBm (typ.)

      • 5 MHz to 3.2 GHz: <-157 dBm, <-161 dBm (typ.)

  • Amplitude Range: DANL to +20 dBm

  • Max. Input Voltage: 50 V

  • Sweep Time Range:

    • Span ≥ 100 Hz: 10 ms to 3200 s

    • Zero Span: 20 µs to 3200 s

  • Resolution Bandwidth (RBW): 10 Hz to 1 MHz (in 1-3-10 sequence)

  • Video Bandwidth (VBW): 1 Hz to 3 MHz (in 1-3-10 sequence)

  • Input Impedance: 50 Ohm nominal

  • Internal Frequency Reference: 10 MHz

  • Frequency Resolution: 1 Hz

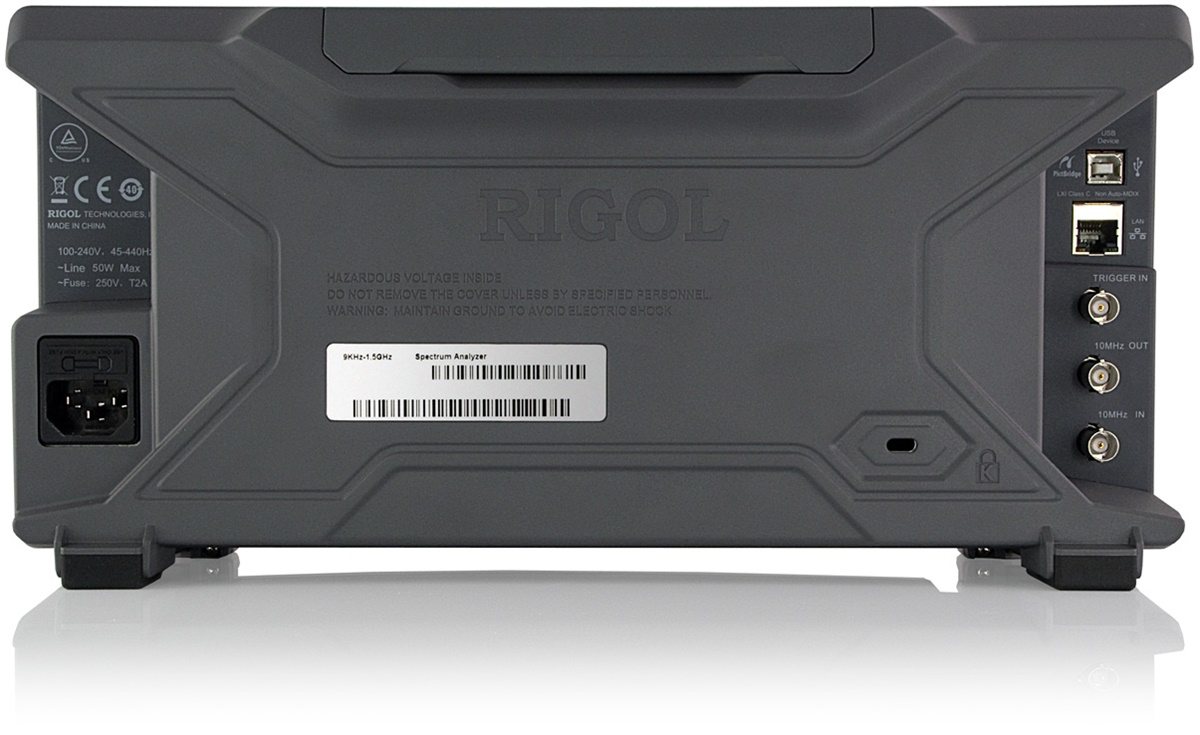

  • Interfaces:

    • USB-Host for USB stick (for saving/loading waveforms)

    • USB for PC connection

    • LAN for network connection

    • GPIB (IEE-488) (optional with USB-GPIB module)

  • Dimensions: 362 mm × 179 mm × 128 mm (15.71" × 8.78" × 6.26")

  • Weight: 4.55 kg (10.03 lbs)

  • Warranty: 3 Years

  • Display: 20.3 cm (8") TFT-Color-LCD, 800 × 480 pixels

Model Overview

Model Max. Bandwidth EMI/QuasiPeak Advanced Measurement Kit Preamplifier Tracking Generator
DSA815 1.5 GHz Optional Optional Standard No
DSA815-TG 1.5 GHz Optional Optional Standard Yes
DSA832E 3.2 GHz Optional Optional Standard No
DSA832E-TG 3.2 GHz Optional Optional Standard Yes
DSA832 3.2 GHz Optional Optional Standard No
DSA832-TG 3.2 GHz Optional Optional Standard Yes
DSA875 7.5 GHz Optional Optional Standard No
DSA875-TG 7.5 GHz Optional Optional Standard Yes
