🔭 Frequency Range
9 kHz → 1.5 GHz → covers audio-RF bands → fits many benches and field jobs.
🤫 High Sensitivity (DANL)
−135 to −161 dBm (typ.) → very low noise floor → weak signals stand out.
🧼 Low Phase Noise
−80 to −98 dBc/Hz @ 10 kHz offset → cleaner skirts → sharper reads on close-in signals.
🎚️ Resolution Bandwidth (RBW)
10 Hz → 1 MHz → narrow for detail → wide for speed.
📢 Built-In Preamplifier
Boosts faint inputs → raises SNR → improves measurement confidence.
🔗 Tracking Generator
Sweeps responses → maps gain, filters, and cables → checks impedance quickly.
🤖 Auto Functions
Auto Tune / Range / Scale / Couple → fewer knob turns → faster lock and read.
🔌 Input Impedance
50 Ω nominal → accurate power reads → standard RF matching.
🖥️ Large Display
8″ TFT (800×480) → clear traces → menus feel simple → fewer mis-selections.
📜 NABL Calibration
Certificate included → verified accuracy → trusted numbers for reports.

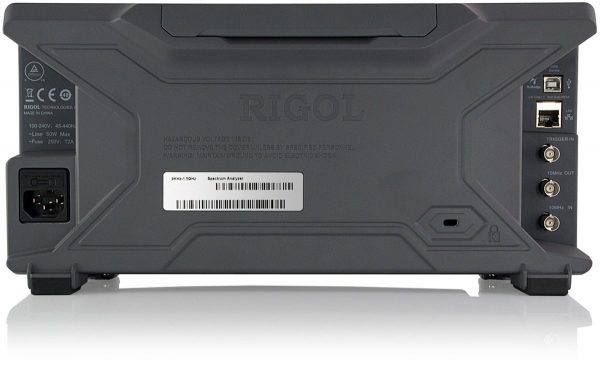

🧷 Interfaces
USB, LAN, GPIB → easy data moves → smooth remote control and scripting.
⚡ Max Input Voltage
Up to 50 V → wider signal handling → safer hookups.
🛡️ Warranty
3 years → long-term support → lower ownership risk.
✨ Helpful Modes & Views
-
Spectrum compare → overlay traces → spot changes fast.
-
10 Hz RBW → ultra-fine detail on narrow signals.
-
AM demodulation → listen and view modulation depth quickly.
-
Peak table → list, sort, and track top signals at a glance.
-
EMI measurement (option) → quasi-peak + CISPR filters → pre-compliance checks before the lab.
