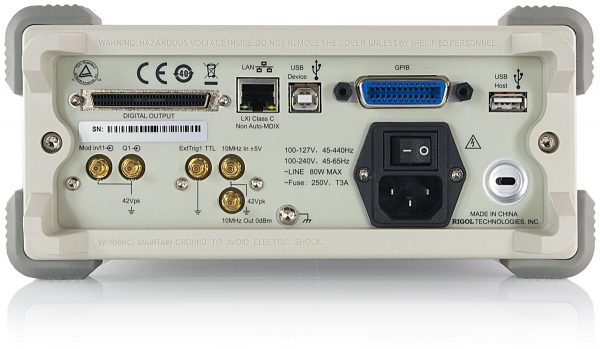

Image 3
Waveform Generators

Rigol DG5352

Rs. 1739025.00

Specifications Generator Function / Waveform Generator Rigol DG5352 Display 4.3″ TFT LCD with 16M true color Resolution 480 × 272 Pixel Interfaces USB-Host (for USB stick i.e. to save/load waveforms) USB for a PC connection LAN for network connection GPIB (IEE-488, General Purpose Interface Bus) Dimensions (W × H × D) 263 mm × 107 mm × 505 mm (10.35″ × 4.21″ × 19.88″) Weight 4.3 kg (9.48 lbs) Supported operation systems Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) The complete list of technical specifications can be found in chapter “Specification” of the datasheet. Function Function / Waveform Generator Rigol DG5352 Channels 2 Signal Output Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise Vertical Resolution 14 bit Amplitudes 5 mVpp ~ 10 Vpp (50 Ω) DC Offset ±5 V (50 Ω) Sample Rate 1 GSa/s Frequency Range Sine 1 µHz – 350 MHz Frequency Range Rectangle 1 µHz – 120 MHz Frequency Range Pulse 1 µHz – 50 MHz Frequency Range Ramp 1 µHz – 5 MHz Frequency Range Arbitrary 1 µHz – 50 MHz Frequency Range Noise 250 MHz (-3db) Resolution 1 µHz.

  • Detail
  • Special Features
  • Specification

✨ Why It Helps (Cause → Effect)

  • Dual channels → drive two signals at once → faster setups and richer tests.

  • 350 MHz bandwidth → high-frequency work stays honest → filters, amps, and clocks behave as expected.

  • Advanced modulation (AM/PWM/FSK/IQ, burst, sweep*) → real-world stress → margins show early.
    *Frequency-hopping available on supported configs.

🎛️ Operate Fast (Action → Result)

  • User-friendly UI → find → set → run → fewer clicks, fewer mistakes.

  • Quick edits on screen → amplitude/frequency/offset in seconds → keep the bench moving.

  • Load arbitrary shapes → play from memory → mimic sensors, buses, and faults accurately.

🔌 Connectivity (Plug → Automate)
USB-Host / USB-Device / RS-232 / LAN / GPIB → SCPI control → script tests, clone setups, log results easily.

🧪 Where It Fits (Use → Payoff)

  • R&D bring-up → complex arbs probe edge cases → bugs surface early.

  • Production test → stored profiles → consistent, defensible outputs across lines.

  • Education & labs → clear UI + wide features → faster learning, less downtime.

📦 Key Specs (Tight, Reader-First)

  • Channels: 2

  • Sample rate: 1 GSa/s

  • Memory depth: 128 Mpts

  • Max sine: 350 MHz

  • Modulation: AM / PWM / FSK / IQ, burst, sweep (plus options)

📡 AM Modulation
Change amplitude with your message → carrier grows/shrinks → info rides cleanly.

⏱️ PWM Modulation
Vary pulse width → control average power → motors/LEDs respond smoothly.

🎚️ FSK Modulation
Hop between two tones → bits ride as frequency shifts → robust links in noise.

🧭 IQ Modulation
Blend I (in-phase) + Q (quadrature) → shape complex constellations → tighter, cleaner spectra.

🗺️ IQ Mapping Editor
Draw/customize symbol points → craft your constellation → match real radios.

🎯 IQ Mapping Selection
Pick ready maps (QPSK, 16/64-QAM, etc.) → apply fast → compare apples-to-apples.

💥 Burst Function
Gate signal on/off → timed packets on demand → mimic time slots, save power.

📈 Sweep Function
Slide frequency/amplitude/phase → reveal resonances and bandwidth → find sweet spots quickly.

🏃 Frequency Hopping (Software Option)
Jump channels rapidly → dodge interference → keep links reliable in crowded bands.

  • Generator Type: Function/Waveform Generator

  • Display: 4.3" TFT LCD with 16M true color

  • Resolution: 480 × 272 pixels

  • Interfaces: USB-Host (for USB stick), USB (PC connection), LAN, GPIB (IEE-488)

  • Dimensions (W × H × D): 263 mm × 107 mm × 505 mm (10.35" × 4.21" × 19.88")

  • Weight: 4.3 kg (9.48 lbs)

  • Supported Operating Systems: Windows XP (32/64-bit), Vista (32/64-bit), Windows 7 (32/64-bit)
