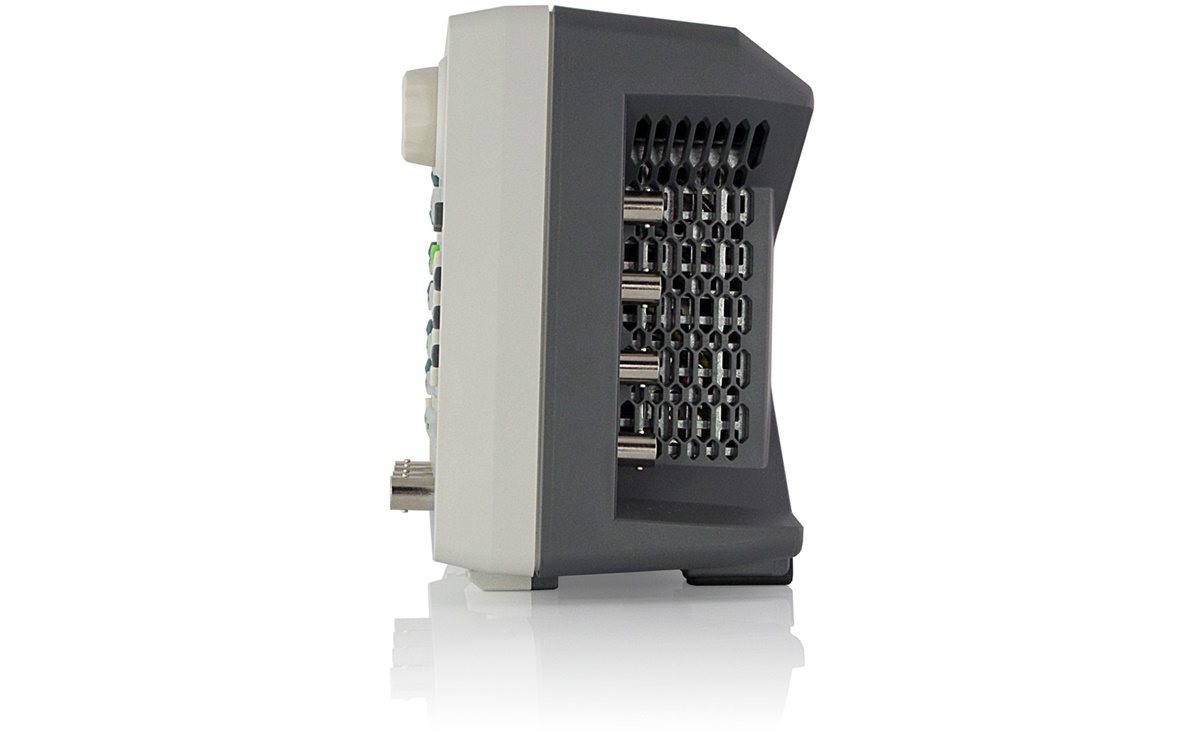

Rigol DG4062

Rs. 108678.00

The Rigol DG4062 is a two-channel function/arbitrary waveform generator designed for creating high-quality signals up to 60 MHz. It offers a 500 MSa/s sample rate, 16 kpts memory, and advanced modulation capabilities. This device is perfect for generating precise analog and digital signals, ideal for a wide range of testing applications. It includes USB-Host, USB-Device, and LAN interfaces for seamless integration into automated systems. With a 3-year warranty, the DG4062 is a reliable and versatile tool for engineers and technicians..

  • Detail
  • Special Features
  • Specification

✨ What It Is
Two-channel function/ARB generator → clean basics and complex shapes → one box covers both.

🧑‍🤝‍🧑 Dual Channels
Independent outputs → sync phase when needed → modulate each one alone → test interactions fast.

🎛 Arbitrary Signal Generation
ARB engine → recreate almost any waveform → go beyond sine/square/triangle → match real-world signals.

đŸŽŧ Harmonics & Complexity
Overtones on demand → build rich spectra → stress filters and amps → reveal nonlinearity early.

📡 Where It Fits
RF checks, signal analysis, circuit sims → one source → many benches.

đŸ–Ĩ Big, Clear Display
7″ screen → both channels visible → settings feel obvious → fewer menu trips.

🧭 Easy Navigation
Simple menus + quick keys → pick, tweak, run → less setup, more testing.

🔌 Control & Connectivity
USB-Host + USB-Device + LAN → drop into rigs → script or remote control → smooth automation.

⚙ī¸ Modulation Options
Analog and digital mods → shape real link behavior → verify timing and depth.

📌 Dual Channels (Dependency Style)

  • Two independent outputs → sync phase exactly → true dual-channel tests.

  • 7″, 800×480 display → both channels visible → quicker checks, fewer mistakes.

🎛 Arbitrary Signal Generation

  • ARB engine → reproduce almost any waveform → match real-world shapes.

  • 150 built-in waveforms → pick and run fast → less setup, more testing.

🔀 Independent Analog & Digital Modulation

  • Separate channels → analog on one, digital on the other → complex scenarios made simple.

  • Parallel outputs → compare behaviors live → speed up debug.

📈 Sweep Functions

  • Constant-amplitude sweeps → clean level across the band → fair, repeatable scans.

  • Sine/square/ramp/ARB during sweep → test real responses → find weak spots early.

đŸŽŧ Harmonic Signals

  • Overtones up to 16th order → stress filters and amps → expose nonlinearity fast.

  • Choose even/odd/all/custom → tune frequency, amplitude, phase → shape spectra your way.

⏱ High-Resolution Frequency Counter

  • Measures frequency, period, +/− pulse width, duty cycle → full timing picture.

  • Range from 1 µHz to 200 MHz → tiny to fast signals covered.

📊 Counter With Statistics

  • History + stats view → see drift and trends over time → catch flaky behavior early.

  • Model: DG4062

  • Max. Frequency: 60 MHz

  • Max. Sample Rate: 500 MSa/s

  • Channels: 2

  • Memory Depth: 16 kpts

  • Resolution: 1 µHz

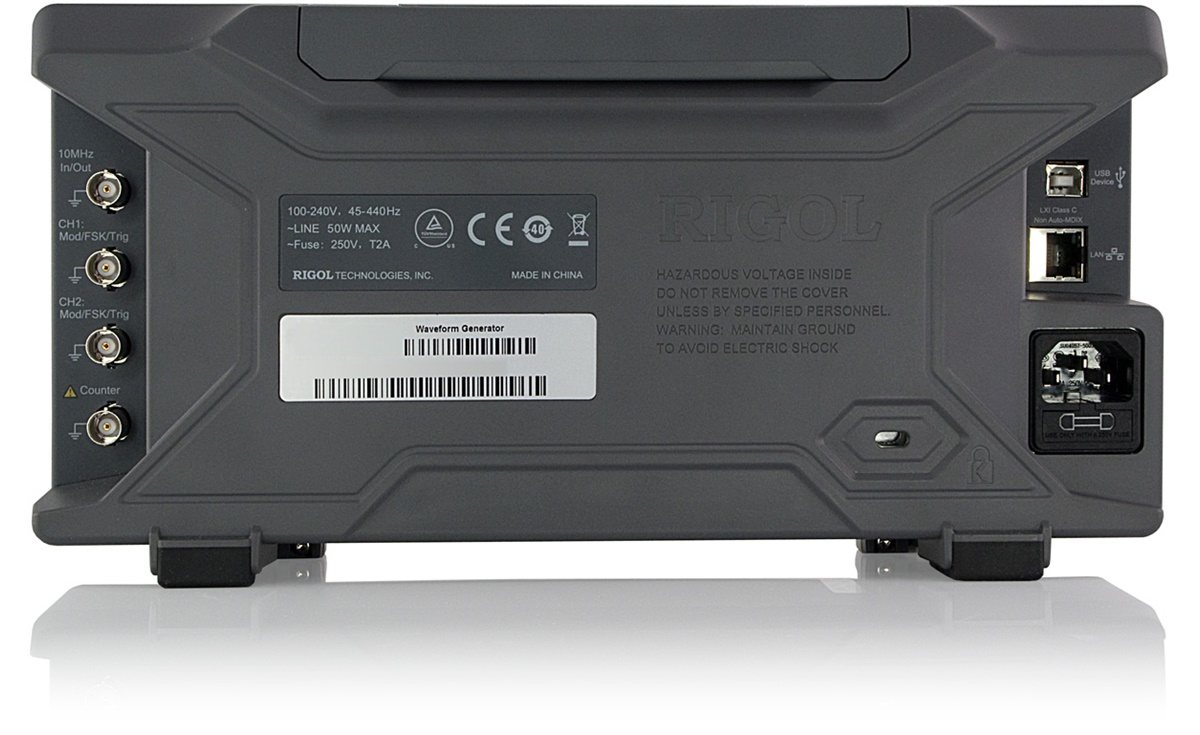

  • Interfaces: USB-Host, USB-Device, LAN

  • Display: 7" TFT-Color-LCD (800 × 480 pixels)

  • Warranty: 3 Years

  • Waveform Types: Sine, Square, Triangle, Arbitrary

  • Sweep Functions: Frequency Sweep, Amplitude Sweep

  • Harmonics: Up to 16th Order

  • Frequency Counter: 1 µHz to 200 MHz

Model Overview

Model Max. Frequency Max. Sample Rate Channels
DG4062 60 MHz 500 MSa/s 2
DG4102 100 MHz 500 MSa/s 2
DG4162 160 MHz 500 MSa/s 2
DG4202 200 MHz 500 MSa/s 2



Price

  • ₹52,000.00

  • ₹61,360.00 (Including 18% GST)

The Rigol DG4062 offers high-quality signal generation with advanced features like arbitrary waveform creation, dual-channel synchronization, and harmonic signal generation, making it a valuable tool for engineers. Its easy-to-use interface and advanced capabilities make it an essential tool for a wide variety of testing and analysis applications.
