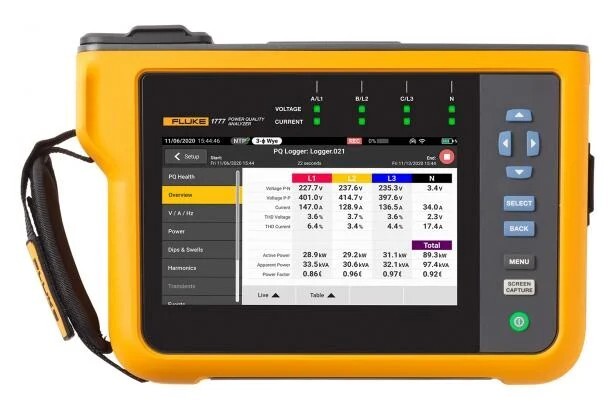

Fluke 1770 Series Three-Phase Power Quality Analyzers

The Fluke 1770 Series comprises advanced three-phase power quality analyzers designed to simplify the complexities of power quality logging, troubleshooting, and analysis. Replacing the long-standing Fluke 430 Series, these analyzers offer automatic measurements, a user-friendly interface, and best-in-class specifications, making them ideal for professionals seeking efficient and accurate power quality assessments..

  • Detail
  • Special Features
  • Specification

  • Automatic Measurements: Eliminates manual setup by automatically detecting and measuring key power quality parameters.

  • High-Speed Sampling: Captures fast transients up to 8 kV, ensuring comprehensive data collection.

  • Wide Harmonic Range: Measures harmonics up to 30 kHz, providing detailed insights into power quality issues.

  • Comprehensive Reporting: Generates detailed reports for analysis and documentation.

  • Flexible Powering Options: Can be powered directly from the measurement circuit, eliminating the need for external power sources.

  • Automatic Measurements: Eliminates manual setup by automatically detecting and measuring key power quality parameters.

  • High-Speed Sampling: Captures fast transients up to 8 kV, ensuring comprehensive data collection.

  • Wide Harmonic Range: Measures harmonics up to 30 kHz, providing detailed insights into power quality issues.

  • Comprehensive Reporting: Generates detailed reports for analysis and documentation.

  • Flexible Powering Options: Can be powered directly from the measurement circuit, eliminating the need for external power sources.

Feature Fluke 1773 Fluke 1775 Fluke 1777
Voltage Range 100 V to 1,000 V 100 V to 1,000 V 100 V to 1,000 V
Current Range 0.1 A to 3,000 A 0.1 A to 3,000 A 0.1 A to 3,000 A
Sampling Rate 1 MHz 1 MHz 20 MHz
Harmonic Measurement Up to 25th harmonic Up to 25th harmonic Up to 25th harmonic
Transients Capture Yes Yes Yes
Display 7-inch color touchscreen 7-inch color touchscreen 7-inch color touchscreen
Wireless Connectivity Yes (Wi-Fi and Bluetooth) Yes (Wi-Fi and Bluetooth) Yes (Wi-Fi and Bluetooth)
Power Supply Powered from measurement circuit Powered from measurement circuit Powered from measurement circuit
Safety Rating CAT IV 600 V CAT IV 600 V CAT IV 600 V
