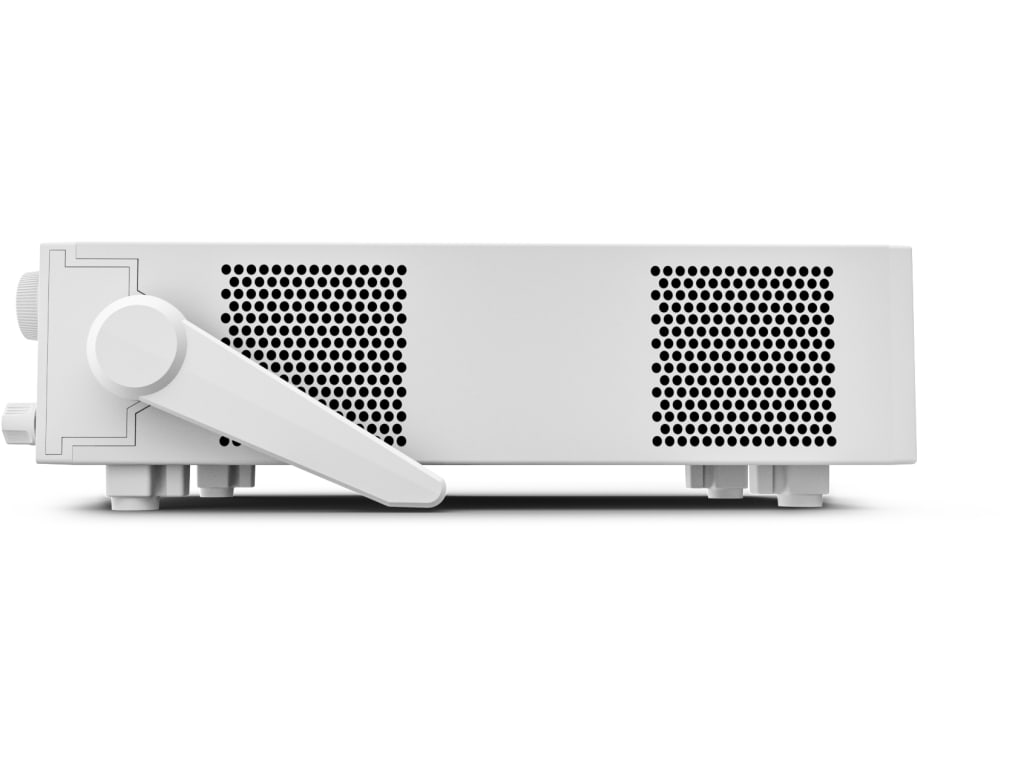

ITECH | DC Electronic Load

iTech IT8511A+

Now includes NABL Calibration Certificate.
Rs. 49140.00

The ITECH Elec IT8511A+ is a high-performance, programmable DC power supply offering a wide output range of 0-150V, 0-60A, with a maximum power output of 300W. It provides precise voltage and current control, making it ideal for testing power modules, automotive electronics, and semiconductor devices. Its compact 1U form factor allows for easy integration into automated systems..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The ITECH Elec IT8511A+ is a versatile and compact programmable DC power supply designed for a wide range of applications in R&D, production, and testing environments. With an output voltage range of 0-150V and a current range of 0-60A, it delivers up to 300W of power. It features a high precision of 1mV for voltage and 0.1mA for current, ensuring accurate and stable power delivery for your testing needs.

Its advanced protection features like OVP, OCP, and OPP safeguard your devices from damage during tests. Additionally, the power supply supports multiple modes of operation (constant voltage, constant current, and constant power), making it adaptable to different testing requirements. The unit can be controlled remotely via USB, LAN, RS232, and optionally GPIB, allowing for seamless integration into automated test systems.

  • High Precision & Resolution: 1mV/0.1mA resolution ensures fine voltage and current control.

  • Multiple Operating Modes: Supports CV (constant voltage), CC (constant current), and CP (constant power) modes.

  • Advanced Protection Features: Includes OVP (overvoltage protection), OCP (overcurrent protection), and OPP (overpower protection).

  • Compact Design: 1U size for easy integration into testing systems.

  • Fast Dynamic Response: Fast voltage and current adjustments for accurate testing.

  • Communication Interfaces: Includes USB, LAN, RS232, and optional GPIB for remote control.

  • SCPI Command Support: For easy integration into automated test systems.

  • Model: ITECH Elec IT8511A+

  • Voltage Range: 0–150V

  • Current Range: 0–60A

  • Power: 300W

  • Resolution: 1mV/0.1mA

  • Accuracy: Voltage: ≤0.03% + 10mV, Current: ≤0.1% + 5mA

  • Interface: USB, LAN, RS232, GPIB (optional)

  • Size: 1U
