MYIR | Single Board Computers

Z-turn Board V2

The Z-turn Board V2 is a high-performance Single Board Computer (SBC) built around the Xilinx Zynq-7010/7020 SoC, featuring dual-core ARM Cortex-A9 and integrated FPGA logic. It offers rich peripherals for industrial applications and embedded systems..

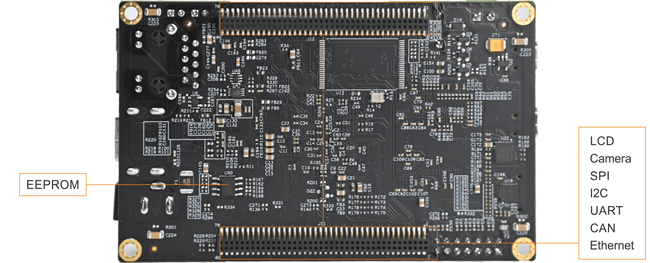

  • Detail
  • Special Features
  • Specification

  • Processor: Xilinx Zynq-7010/7020, ARM Cortex-A9, with integrated FPGA.

  • Memory: 1GB DDR3 SDRAM (expandable up to 2GB), 16MB QSPI Flash.

  • Storage: MicroSD slot for additional storage.

  • Connectivity: 1 x 10/100/1000M Ethernet, 1 x USB Host, 1 x USB OTG, 1 x USB UART debug port, 1 x CAN.

  • Expansion: 2 x 20-pin headers for I/O expansion, MIPI-CSI camera support.

  • Power Supply: 5V/2A, with USB or external power options.

  • OS Support: Linux 4.14.0, Yocto, Python development.

  • Temperature: Commercial grade (0~70°C).

  • Display: HDMI (1080p), optional display interfaces.

  1. Processor: Xilinx Zynq-7010/7020 with ARM Cortex-A9 dual-core (667MHz to 866MHz).

  2. Memory: 1GB DDR3 SDRAM and 16MB QSPI Flash.

  3. Connectivity: Gigabit Ethernet, USB 2.0 OTG, USB 2.0 Host, HDMI, and CAN.

  4. Expansion: 2 x 20-pin headers with 90/106 user I/O, up to 39 LVDS pairs.

  5. Sensors: Onboard three-axis acceleration and temperature sensors.

  6. Display Support: HDMI output with 1080p resolution.

  7. Operating Temperature: 0°C to 70°C (commercial grade).

  8. Development Support: Ready for Linux with SDK and Python development support.



  • Dimensions: 63mm x 102mm x 1.6mm (8-layer PCB design).

  • Buttons: Reset, User buttons; 5 LEDs (power and status).

  • RTC: Optional RTC support.

  • User Interface: 1 x 2.54mm pitch 14-pin JTAG interface.
