MYIR | Single Board Computers

MYS-8MMX-V2 Single Board Computer

The MYS-8MMX-V2 Single Board Computer offers a high-performance, energy-efficient solution for a wide range of embedded applications. Powered by the NXP i.MX 8M Mini processor with up to 1.8GHz ARM Cortex-A53 cores and 400MHz Cortex-M4, this compact board features 2GB DDR4, 8GB eMMC, and 32MB QSPI Flash for reliable storage and memory. With versatile connectivity options including Gigabit Ethernet, USB 3.0, HDMI, MIPI-CSI camera interface, and WiFi/Bluetooth, it’s perfect for AI, IoT, industrial, and multimedia applications. Supports Linux and Ubuntu OS for flexible development..

  • Detail
  • Special Features
  • Specification

The MYS-8MMX-V2 SBC is designed for embedded solutions that require powerful processing, AI capabilities, and multimedia output. The NXP i.MX 8M Mini processor provides the board with sufficient power to handle a variety of real-time tasks, making it a great choice for AI video analytics, IoT gateways, industrial automation, and smart healthcare systems.

Equipped with 2GB of LPDDR4 memory and 8GB of eMMC storage, this board offers fast processing speeds and reliable storage for demanding applications. For external storage, the Micro SD card slot and PCIe NVMe M.2 interface further enhance its scalability.

With connectivity options like Gigabit Ethernet, USB 3.0, USB Type-C, and wireless capabilities via WiFi and Bluetooth, it is highly adaptable for a wide variety of use cases in industries such as smart cities, retail, automotive, and surveillance.

Its MIPI CSI camera interface, HDMI, and LVDS interfaces make it ideal for multimedia and video processing applications. The low-power design, combined with industrial-grade durability, ensures this board can run efficiently in harsh environments.

  • High-Performance Processor

    • Up to 1.8GHz ARM Cortex-A53 quad-core CPU and 400MHz Cortex-M4 co-processor for efficient processing.

  • AI & Multimedia Support

    • Equipped with 2D/3D GPU, 1080p VPU, and up to 6 TOPs NPU for AI-driven tasks and high-quality graphics.

  • Rich Connectivity Options

    • Features USB 3.0, USB Type-C, Gigabit Ethernet, MIPI-CSI camera, HDMI, LVDS, WiFi/Bluetooth, and PCIe for 4G LTE support.

  • Compact and Versatile Design

    • Measures 95mm x 65mm for easy integration into embedded systems, with support for expansion interfaces.

  • Rugged and Industrial-Grade

    • Supports industrial-grade temperature range of -40°C to 85°C, ideal for demanding environments.

  • Power Efficient

    • Low power consumption, making it suitable for energy-conscious applications in edge computing and IoT systems.

  • Software Flexibility

    • Fully compatible with Linux 5.4.3 and Ubuntu, with a rich set of development tools for quick customization.

  • Expansion Options

    • Customizable with MYB-6ULX Expansion Board for additional I/O, including Ethernet, CAN, RS485, Audio, and Camera functions.

General Features

  • Processor: NXP i.MX 8M Mini, 1.8GHz ARM Cortex-A53, 400MHz Cortex-M4

  • Memory: 2GB DDR4

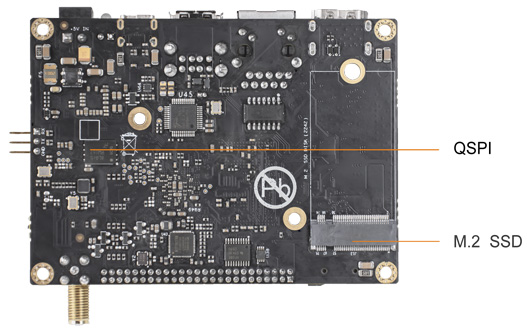

  • Storage: 8GB eMMC, 32MB QSPI Flash, Micro SD slot, PCIe NVMe M.2

  • Power Supply: 5V/2A

  • Operating Temperature: -40°C to 85°C (industrial grade), 0°C to 70°C (commercial grade)

Connectivity

  • Ethernet: 1x 10/100/1000Mbps

  • USB: 2x USB 3.0, 1x USB Type-C

  • Wireless: WiFi/Bluetooth 5.0

  • Camera Interface: MIPI-CSI

  • Display: HDMI (1080p), Mini DP

  • Expansion: 2x 20-pin headers (supports Ethernet, UARTs, CAN, SPI, GPIOs)

Software Features

  • OS Support: Linux, Ubuntu 18.04

  • AI Frameworks: TensorFlow, PaddlePaddle, Keras, PyTorch

  • Driver Support: USB, Ethernet, Audio, WiFi/Bluetooth, Camera

  • Development Tools: Yocto, QT

Physical Characteristics

  • Dimensions: 95mm x 65mm (board), 135mm x 74.5mm x 35.8mm (box)

  • Weight: N/A

  • Power: 5V, 2A
