MYD-LR3568-GK-B IPC Box

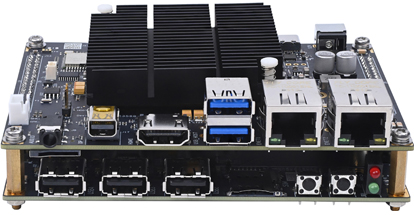

The MYD-LR3568-GK-B IPC Box integrates the Rockchip RK3568J processor with 2GB LPDDR4 and 16GB eMMC storage, delivering high-performance capabilities for edge computing and industrial applications. Featuring dual Gigabit Ethernet, USB 3.0, WiFi/Bluetooth, HDMI, Mini DP, and M.2 expansion support, this rugged fanless design offers robust performance with a wide operating temperature range of -40°C to 85°C. It supports Linux and Debian OS, making it an ideal choice for industrial IoT, AI-powered systems, and multimedia applications..

  • Detail
  • Special Features
  • Specification

The MYD-LR3568-GK-B IPC Box integrates the Rockchip RK3568J SoC, providing a high-performance solution for edge computing and industrial AI applications. It features dual Gigabit Ethernet, USB 3.0 ports, RS232/RS485, WiFi/Bluetooth, and M.2 expansion for 4G LTE connectivity, offering robust connectivity and versatility for IoT devices, AI video analytics, and industrial control.

Equipped with 2GB LPDDR4 and 16GB eMMC storage, the box ensures fast processing and ample storage for data-driven applications. The 4K display output via HDMI and Mini DP makes it ideal for applications requiring high-definition visuals. The fanless design ensures silent operation, while the wide operating temperature range ensures reliable performance in industrial environments.

The MYD-LR3568-GK-B IPC Box comes pre-installed with Linux and Debian, along with a comprehensive software suite for easy customization and development. With full driver and kernel support, developers can quickly integrate the box into their applications, while the M.2 PCIe slot allows for future expansion.

  • Powerful Rockchip RK3568J Processor

    • Features a Quad-core ARM Cortex-A55 processor running at 1.8GHz, with 1.0 TOPS NPU, and supports 4K video decoding and AI inference acceleration.

  • Comprehensive Connectivity

    • Equipped with 2x USB 3.0, 2x Gigabit Ethernet, 3x USB 2.0, 2x RS485, RS232, CAN ports, and WiFi/Bluetooth for seamless integration into industrial applications.

  • High-Resolution Multimedia Support

    • Supports 4K displays through HDMI 2.0 and Mini DP, along with audio output for a complete multimedia experience in industrial environments.

  • Expandable with M.2 PCIe Slot

    • M.2 Slot for a 4G LTE module, enabling wireless connectivity with a SIM card slot and antenna support.

  • Industrial-Grade Durability

    • Fanless design and wide temperature range of -40°C to 85°C make it suitable for rugged environments, ensuring reliable performance in harsh industrial conditions.

  • Comprehensive Software Support

    • Pre-installed with Linux and Debian, offering full source code for u-boot, kernel, drivers, and a custom development environment.

  • Cost-Effective Edge Computing Solution

    • Starting at USD 159, the MYD-LR3568-GK-B IPC Box offers high value for industrial AI, IoT, and edge computing applications.

General Features

  • Processor: Rockchip RK3568J (Quad-core ARM Cortex-A55 @ 1.8GHz, 1.0 TOPS NPU)

  • Memory: 2GB LPDDR4

  • Storage: 16GB eMMC, 32KB EEPROM, MicroSD card slot

  • Power Supply: 12V DC, 2A

  • Operating Temperature: -40°C to 85°C

  • Power Consumption: <15W

Connectivity

  • Ethernet: 2x Gigabit Ethernet

  • USB: 2x USB 3.0, 3x USB 2.0

  • WiFi/Bluetooth: WiFi 5 (supports BT 5.2)

  • 4G LTE: M.2 PCIe slot (for USB-based 4G LTE module)

  • Serial Ports: RS232, 2x RS485, 2x CAN

  • I/O: 2x Digital Inputs, 2x Digital Outputs

Multimedia & Display

  • Display Output: HDMI 2.0 (Supports 4K@60Hz), Mini DisplayPort (Supports 1920x1080@60Hz)

  • Audio: 3.5mm Audio Jack (Input/Output)

Software & Drivers

  • Operating Systems: Linux, Debian

  • AI Frameworks: TensorFlow, Keras, PyTorch, ONNX

  • Drivers: Full suite including Ethernet, USB, Audio, WiFi, CAN, GPIO, HDMI, and MIPI drivers

  • Development Tools: Full u-boot, kernel source code, and driver source code

Physical Characteristics

  • Dimensions: 130mm x 93.5mm x 44mm (without mounting bracket), 160mm x 93.5mm x 44mm (with mounting bracket)

  • Certifications: CE, FCC
