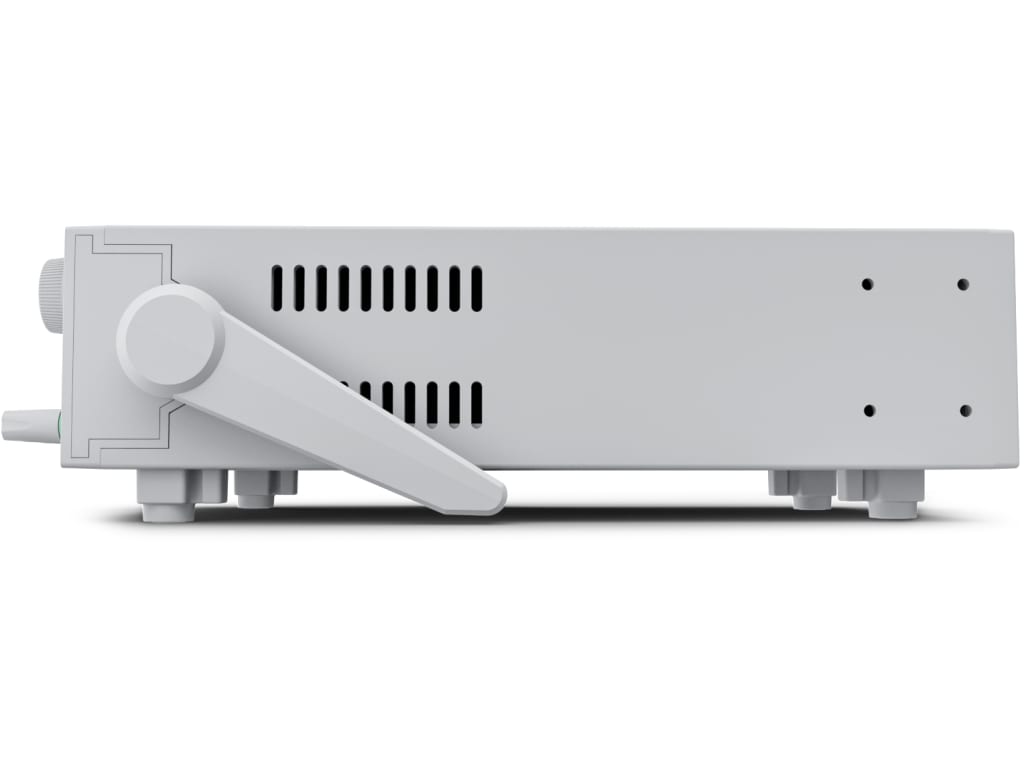

ITECH | DC Power Supply

ITech IT6121B

Rs. 72900.00

The ITECH IT6121B is a high-speed, high-accuracy programmable DC power supply offering 0–60V and 0–10A output with a total power capacity of 200W. Designed for demanding applications, it features ultra-fast dynamic response, high resolution, and advanced command processing capabilities. Whether used in R&D, quality inspection, or production lines, the IT6121B ensures precise voltage/current control, real-time feedback, and seamless integration with automated test systems..

  • Detail
  • Special Features
  • Specification

The IT6121B delivers precision power output with excellent stability, making it ideal for critical electronic tests. The power supply supports fast programming and high-speed response, allowing it to track rapid voltage or current changes with ease. It also includes LIST and STEP modes for creating complex testing sequences and allows adjustment of slew rates to simulate real device behaviors. Its compact design fits well in both benchtop and rack-mounted environments. Built-in safety features and full communication support ensure smooth and safe integration into any testing workflow.

  • Output range: 60V, 10A, 200W with high accuracy

  • Fast transient response time and low output ripple

  • High-speed programming with up to 1ms command response

  • Voltage/current slew rate control

  • Built-in LIST/STEP and waveform simulation functions

  • High-resolution VFD display for real-time data visibility

  • Standard interfaces: USB, RS232, GPIB, LAN

  • Advanced protections: OVP, OCP, OTP, and remote sensing

Parameter Value
Model IT6121B
Output Voltage 0 – 60 V
Output Current 0 – 10 A
Output Power 200 W
Voltage Resolution 1 mV
Current Resolution 0.1 mA
Voltage Accuracy ≤ 0.03% + 10 mV
Current Accuracy ≤ 0.05% + 10 mA
Ripple & Noise (Vpp) ≤ 10 mV
Transient Response ≤ 50 µs
Programming Speed ≤ 1 ms
Slew Rate Control Supported
Display VFD
Communication Ports USB, RS232, GPIB, LAN (standard)
Protection OVP, OCP, OTP, Remote Sense
Dimensions (W×H×D) 215 × 88.2 × 354 mm
Weight Approx. 6.5 kg
